Tripp Lite

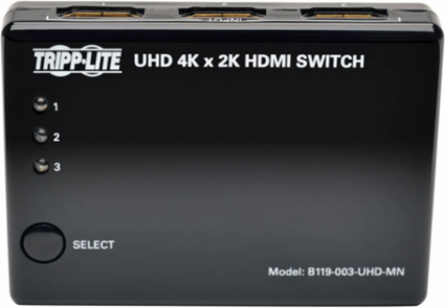

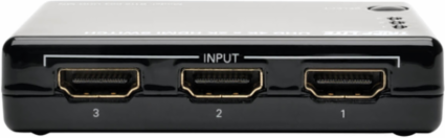

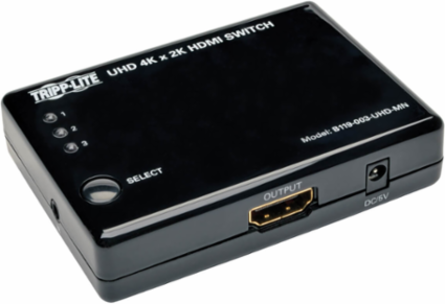

Tripp Lite B119-003-UHD-MN 3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDMI 1.4, HDCP 1.4, EDID

3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDMI 1.4, HDCP 1.4, EDID
3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDMI 1.4, HDCP 1.4, EDID
3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDMI 1.4, HDCP 1.4, EDID
3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDMI 1.4, HDCP 1.4, EDID
  • MPN: B119-003-UHD-MN
  • UPC: 037332189233
  • PPN: TRP-B119-003-UHD-MN

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$40.15/ EA

Description

3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDMI 1.4, HDCP 1.4, EDID

Features

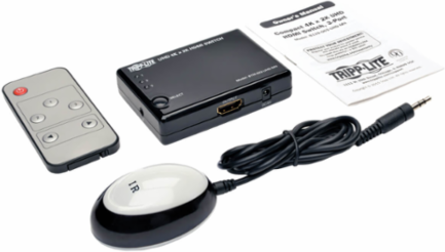

  • Switch source devices using buttons or included remote control
  • Switches to next port when current device is powered off
  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
  • Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound
  • No software, drivers or external power supply required
  • 3-year limited warranty
  • Connects 3 HDMI Devices to 1 HDMI Display
  • Features Top-of-the-Line Audio and Video
  • Sets Up in Seconds

Specifications

Features & Specifications

Port Selection
Pushbutton
HDMI Specification
1.4
Audio Specification
DTS-HD, Dolby TrueHD and 7.1 Channel Surround Sound
Max Supported Color Depth
48-bit Deep Color
IR Remote Extension Support
Yes
Consumer Electronics Control (CEC) Supported
Yes
Max Supported Video Resolution3840 x 2160 @ 30Hz
HDCP Specification1.4
Driver RequiredNo
EDID CompatibleYes
3D Video SupportedYes
TechnologyHDMI; IR

Certifications

Certifications
Tested to CE, FCC, RoHS, REACH

Connections

Ports
3
Side B - Connector 1
HDMI (FEMALE)
Side A - Connector 1(3) HDMI (FEMALE)

Physical

Color
Black
Rackmountable
No
Shipping Weight (lbs.)
0.26
Unit Packaging Type
Box
Material of ConstructionABS
Shipping Dimensions (hwd / in.)5.30 x 2.70 x 1.00
Unit Dimensions (hwd / in.)0.7 x 3.2 x 2.3
Unit Weight (lbs.)0.12

User Interface, Alerts & Controls

LED Indicators
Red (1, 2, 3)

Input

Bus Powered
Yes

Environmental

Operating Temperature Range
32 to 113 F (0 to 45 C)
BTUs
3.4 BTU/Hr
Operating Humidity Range
10% to 85 % RH, Non-Condensing
Storage Temperature Range14 to 176 F (-10 to 80 C)
Power Consumption (Watts)1
Storage Humidity Range5% to 90% RH, Non-Condensing

Overview

UPC Code
037332189233

Warranty

Product Warranty Period (Worldwide)
3-year limited warranty
