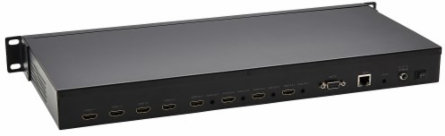

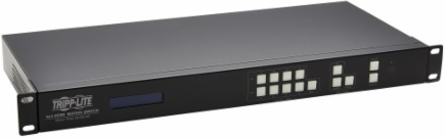

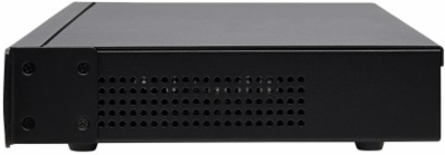

Tripp Lite B3024HX4H4K HDMI Matrix Switch/Splitter with Audio Extractor, 4x4, 4K 60 Hz, HDR, Remote Access

MPN: B3024HX4H4K
UPC: 037332256560
PPN: TRP-B302-4HX4H-4K

$639.82

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

4x4 HDMI Matrix Switch/Splitter with Audio Extractor, Remote Access and Multi-Resolution Support, 4K 60 Hz, HDR

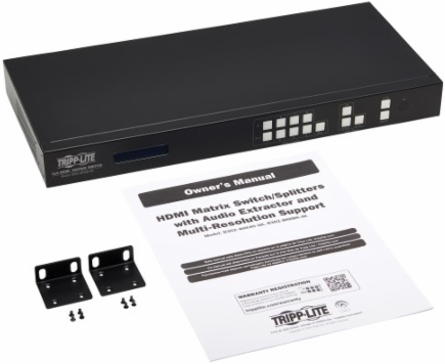

Features

IR remote control
IR receiver cable, 4 ft
External power supply with 4 ft. cord (Input: 100-240V, 50/60 Hz, 0.9A; Output: 12V 3A)
(4) International plug adapters (North America, U.K., Europe, Australia)
Rack-mounting hardware
Driver CD
Owner's manual

Documentation & Downloads

Specifications

Dimensions

Side A Connectors	3.5MM (FEMALE); DB9 (FEMALE); (4) HDMI (FEMALE); RJ45 (FEMALE)
Unit Dimensions	17.320 x 7.870 x 1.730 in

Side B Connectors	(4) 3.5MM (FEMALE); (4) HDMI (FEMALE)

Material

Color	Black

Material of Construction	Steel

Compliance

Product Warranty Period	3-year limited warranty

Reference

LED Indicators	RJ45 Port: Green (Power), Yellow (Signal/Data), Pushbuttons: Blue

DC Barrel Plug	5.5 x 2.5 x 7.5mm, Positive Pin, Negative Sleeve

Performance

Product Type	Matrix Switch
Input x Output	4 x 4
Max Supported Color Depth	36-bit Deep Color
Chroma Sub Sampling	4:4:4
Technology	HDMI; IR
Port Selection	Pushbutton; Remote Selector; Software
AC Power Adapter Output	12V / 3A
Operating Temperature Range	32° to 113°F (0° to 45°C)

Max Supported Video Resolution	4096 x 2160 @ 60Hz
Number of Ports	4
HDR Support	Yes
Audio Specification	Stereo Audio
HDCP Specification	2.2
AC Power Adapter Input	100-240V / 50/60Hz / 0.9A
Power Source Type	AC Adapter
Operating Humidity Range	10% to 85% RH, Non-Condensing
