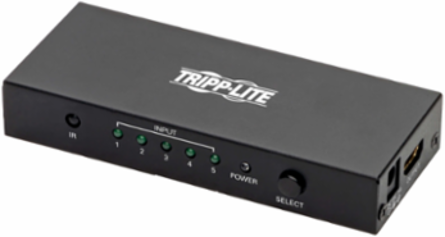

Tripp Lite B119-005-UHD 5-Port HDMI Switch with Remote Control - 4K @ 60 Hz 4:4:4 with HDR, 3D, HDMI 2.0, HDCP 2.2, EDID
Tripp Lite B119-005-UHD 5-Port HDMI Switch with Remote Control - 4K @ 60 Hz 4:4:4 with HDR, 3D, HDMI 2.0, HDCP 2.2, EDID
- MPN: B119-005-UHD
- UPC: 037332210180
- PPN: TRP-B119-005-UHD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$124.28/ EA
Description
5-Port HDMI Switch with Remote Control - 4K @ 60 Hz 4:4:4 with HDR, 3D, HDMI 2.0, HDCP 2.2, EDID
Features
- Switch between 5 source devices with included remote for ultimate convenience
- Up to 18Gbps data rate
- HDR and HDCP 2.2 compliant
- Transmits UHD picture quality at resolutions up to 4K @ 60 Hz (4:4:4)
- Delivers full, rich DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
- Compact metal unit fits easily into home theater or office workspace setup
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- 5-Port HDMI Switch with Remote Connects 5 Sources to One 4K HDMI Display
- Transmits Crystal-Clear Video up to 4K x 2K for Ultra High Definition Presentations
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
- 3-Year Warranty
Specifications
Features & Specifications
- Port Selection
- Pushbutton; Remote Selector
- HDMI Specification
- 2.0
- Audio Specification
- DTS-HD, Dolby TrueHD and 7.1 Channel Surround Sound
- Max Supported Color Depth
- 48-bit Deep Color
- 3D Video Supported
- Yes
- Technology
- HDMI; IR
Max Supported Video Resolution4K @ 60Hz 4:4:4
HDCP Specification2.2
Driver RequiredNo
EDID CompatibleYes
Consumer Electronics Control (CEC) SupportedYes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 5
- Side B - Connector 1
- HDMI (FEMALE)
Side A - Connector 1(5) HDMI (FEMALE)
Physical
- Color
- Black
- Rackmountable
- No
- Unit Packaging Type
- Box
Material of ConstructionIron
Unit Dimensions (hwd / in.)0.8 x 4.8 x 2
Unit Weight (lbs.)0.33
User Interface, Alerts & Controls
- LED Indicators
- Red (Power), Green (1, 2, 3, 4, 5)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 1A
- External Power Supply Cord Length (m.)
- 1.5
- External Power Supply Plug(s)
- NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
- Bus Powered
- No
External Power Supply Input Specs (V / Hz / A)100-240V / 50Hz/60Hz / 0.3A
External Power Supply Cord Length (ft.)5.0
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsBS; C-Tick; CB; CE; DOE; FCC; GS; RoHS; UL; cUL
Communications
- Signal Range (ft.)
- 16
Latency20ms
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- BTUs
- 6.3 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
Storage Temperature Range14 to 176 F (-10 to 80 C)
Power Consumption (Watts)1.85
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332210180
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
