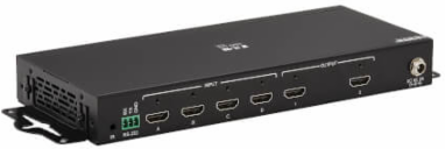

Tripp Lite B1194X24K 4x2 HDMI Matrix Switch/Splitter with Remote Control and Multi-Resolution Support, 4K 60 Hz, HDR, 4:4:4, TAA
- MPN: B1194X24K
- UPC: 037332282835
- PPN: TRP-B119-4X2-4K
CAD
$258.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4x2 HDMI Matrix Switch/Splitter with Remote Control and Multi-Resolution Support, 4K 60 Hz, HDR, 4:4:4, TAA

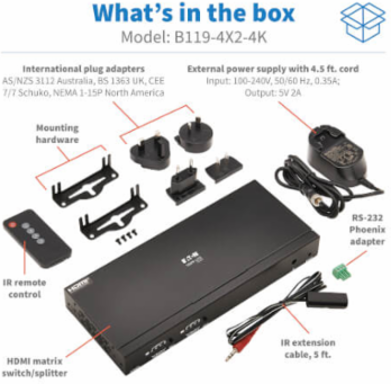

Features
- IR remote control included
- IR extension cable, 5 ft. (1.5 m) included
- RS-232 Phoenix adapter included
- External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
- (4) International plug adapters included (North America, U.K., Europe, Australia)
- Mounting hardware included
- Owner's manual included
Documentation & Downloads
Specifications
Performance
- Max Supported Video Resolution
- 3840 x 2160 @ 60Hz (when all 4 HDMI ports are in use)
- Chroma Sub Sampling
- 4:4:4
- Max Supported Color Depth
- 8-bit
- HDCP Specification
- 2.2
- Input x Output
- 4 x 2
- AC Adapter Input
- 100-240V / 50/60Hz / 0.35A
- Port Selection
- Pushbutton
Supported Resolutions1920x1080 (1080p); 3840x2160 (4K)
HDR SupportYes
Audio SpecificationDTS, Dolby, 7.1 channel
TechnologyHDMI; IR
Number of Ports2
AC Adapter Output5V / 2A
Port ControlPush Buttons
Reference
- Product Type
- Matrix Switch
Product Warranty Period3-year limited warranty
Material
- Material of Construction
- Metal
- Connector Plating
- Nickel
- Side B - Connector 1
- (2) HDMI (Female)
- Mounting Details
- Surface mount bracket and screws
ColorBlack
Side A - Connector 1(4) HDMI (Female)
LED IndicatorsGreen (Power) and Orange (Source)
AC Power Adapter PlugAS/NZS 3112 Australia; BS 1363 UK; Europlug; NEMA 1-15P North America
Dimensions
- Unit Dimensions
- 1.170 x 9.250 x 3.940 in
