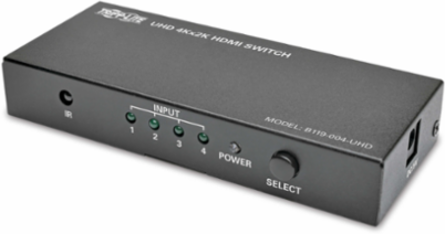

Tripp Lite B119-004-UHD 4-Port HDMI Switch with Remote Control - 4K @ 60 Hz 4:4:4 with HDR, 3D, HDMI 2.0, HDCP 2.2, EDID
Tripp Lite B119-004-UHD 4-Port HDMI Switch with Remote Control - 4K @ 60 Hz 4:4:4 with HDR, 3D, HDMI 2.0, HDCP 2.2, EDID
- MPN: B119-004-UHD
- UPC: 037332191342
- PPN: TRP-B119-004-UHD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$117.67/ EA
Description
Connect 4 HDMI source devices, such as a Blu-ray™ player and DVR, to a single port on an HDMI display and switch back and forth between them. Ideal for home entertainment systems, digital signs and video presentations.
Features
- Supports up to 4K @ 60Hz (4:4:4) Resolution
- Up to 18Gbps data rate
- HDR and HDCP 2.2 compliant

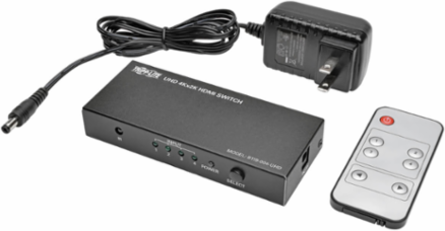

- Switch source devices using button or included remote control
- Supports DTS-HD, Dolby® TrueHD and 7.1-channel surround sound
- Plug and Play
- 3-year limited warranty
- Connects 4 HDMI Devices to a Single HDMI Display
- Top-of-the-Line Audio and Video
- Sets Up in Seconds
Specifications
Features & Specifications
- Port Selection
- Pushbutton; Remote Selector
- HDMI Specification
- 2.0
- Audio Specification
- DTS-HD, Dolby TrueHD and 7.1 Channel Surround Sound
- Max Supported Color Depth
- 48-bit Deep Color
- 3D Video Supported
- Yes
- Technology
- HDMI; IR
Max Supported Video Resolution4K @ 60Hz 4:4:4
HDCP Specification2.2
Driver RequiredNo
EDID CompatibleYes
Consumer Electronics Control (CEC) SupportedYes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 4
- Side B - Connector 1
- HDMI (FEMALE)
Side A - Connector 1(4) HDMI (FEMALE)
Physical
- Color
- Black
- Rackmountable
- No
- Shipping Weight (lbs.)
- 1.00
- Unit Packaging Type
- Box
Material of ConstructionIron
Shipping Dimensions (hwd / in.)3.00 x 5.20 x 7.10
Unit Dimensions (hwd / in.)0.8 x 4.8 x 2
Unit Weight (lbs.)0.33
User Interface, Alerts & Controls
- LED Indicators
- Red (Power), Green (1, 2, 3, 4)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 2A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CE; ETL; UL
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.35A
External Power Supply Cord Length (ft.)4
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- BTUs
- 6 BTU/Hr
- Operating Humidity Range
- 10% to 85 % RH, Non-Condensing
Storage Temperature Range14 to 176 F (-10 to 80 C)
Power Consumption (Watts)1.75
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332191342
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
Downloads
