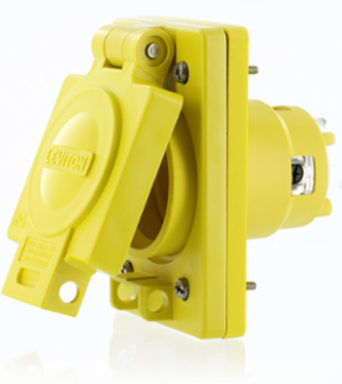

Leviton 69W81 Wetguard Watertight Locking Receptacle 30 Amp 120/208 Volt NEMA L21-30R
Leviton 69W81 Wetguard Watertight Locking Receptacle 30 Amp 120/208 Volt NEMA L21-30R
- MPN: 69W81
- UPC: 078477067635
- PPN: LEV-69W81
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$221.75/ EA
Description

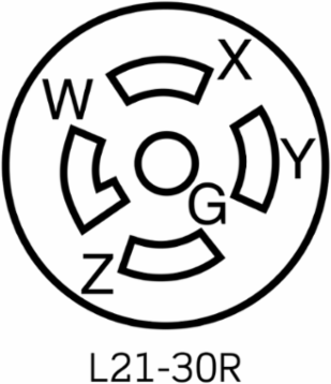

30 Amp, 120/208 Volt 3-Phase Y, NEMA L21-30R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Wetguard w/Cover - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13399
Material Specifications
- Base Material
- Nylon
- Grounding Screw
- Brass 8-32
- Terminal Screws
- Brass 10-32
Face MaterialNylon
Line ContactsBrass .040 Thick
YokeNickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.14-8 AWG
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Amperage
- 30 A
- Color
- Yellow
- Grounding
- Grounding
- Standards and Certifications
- UL/CSA
- Termination
- Back
- Warranty
- Limited Lifetime Warranty
BrandWetguard
Device TypeLocking Outlet
Pole4
Strap MaterialNickel-Plated Brass
Voltage120/208 VAC
Wire5
Environmental Specifications
- Environment
- Wet
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Current Limiting
- Full Rated Current
- Phase
- 3-Phase WYE
Dielectric VoltageWithstands 2000V per UL498
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 3 HP
