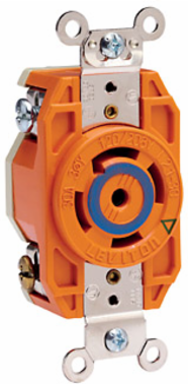

Leviton 2810-IG 30 Amp, 120/208 Volt, 4-Pole Flush Mount Locking Receptacle, Industrial Grade
- MPN: 2810-IG
- UPC: 078477075791
- PPN: LEV-2810-IG
CAD
$137.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

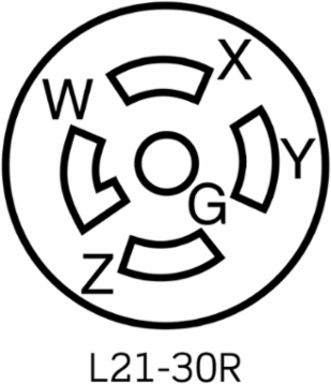

30 Amp, 120/208 Volt 3-Phase Y, NEMA L21-30R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Nylon
- Clamp Nuts
- Nickel-Plated Brass
- Cover Material
- Valox 357
- Ground Clips
- Nickel-Plated Brass
- Grounding Screw
- Chromated Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Chromated Brass
Body MaterialValox 357
ColorOrange
Face MaterialNylon
Ground ContactsBrass
Line ContactsBrass
Terminal ClampsZinc-Plated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Product Features
- Brand
- V-0-Max
- Warranty
- Limited Lifetime Warranty
FeatureIsolated Ground
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 5
Current LimitingFull Rated Current
GroundingIsolated Ground
Pole4
Voltage120/208 VAC
