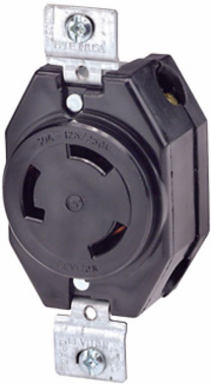

Leviton 3330 30 Amp Flush Mount Locking Receptacle, 125/250 Volt, Non-Grounding, Industrial Grade
- MPN: 3330
- UPC: 078477821572
- PPN: LEV-3330
CAD
$98.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

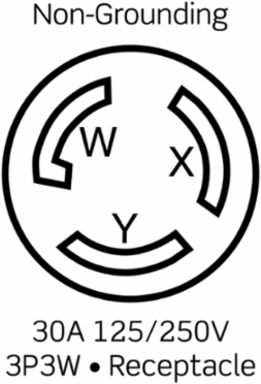

30 Amp, 125/250 Volt, NEMA Non-NEMA, 3P, 3W, Flush Mounting Locking Receptacle, Industrial Grade, Non-Grounding - BLACK
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Base Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Brass .040 Thick
- Terminal Screws
- Brass 10-32
ColorBlack
Grounding ScrewBrass 8-32
Strap MaterialNickel-Plated Brass
YokeNickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Silver-Neutral
Torque Range14-16 in-lbs
Product Features
- Device Type
- Locking Receptacle
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
