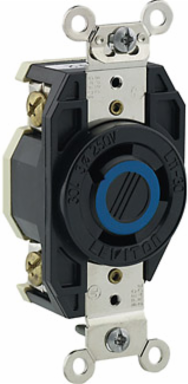

Leviton 2670 30 Amp 250 Volt Flush Mount Locking Receptacle NEMA L11-30R, Industrial Grade
- MPN: 2670
- UPC: 078477045886
- PPN: LEV-2670
CAD
$103.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

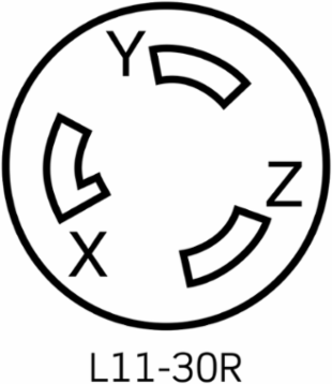

30 Amp, 250 Volt 3-Phase, NEMA L11-30R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
- UL Fed Spec WC-596
- File E13399
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Base Material
- Valox
- Color
- Black
- Face Material
- Ultramid
- Line Contacts
- Brass .040 Thick
- Terminal Clamps
- Nickel-Plated Brass
Body MaterialNylon
Cover MaterialValox 357
Grounding ScrewChromated Brass
Strap MaterialNickel-Plated Brass
Terminal ScrewsChromated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Product Features
- Brand
- V-0-Max
- Standards and Certifications
- UL
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
GroundingNon-Grounding
Pole3
Voltage250 VAC
AC Horsepower Ratings
- At Rated Voltage
- 2 HP L-L / 2 HP L-N
