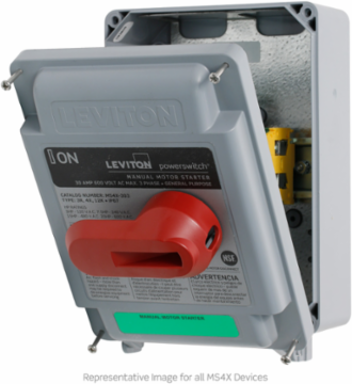

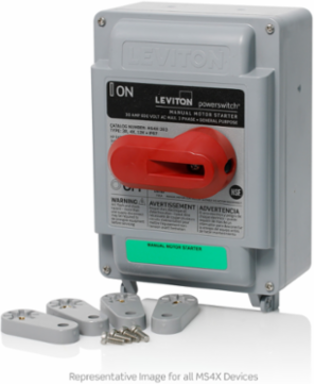

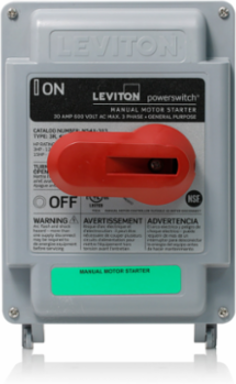

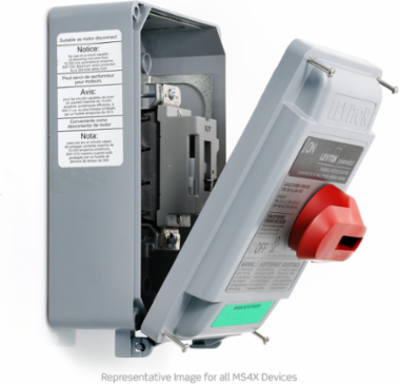

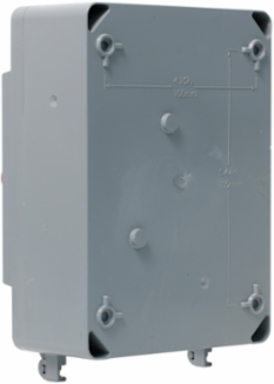

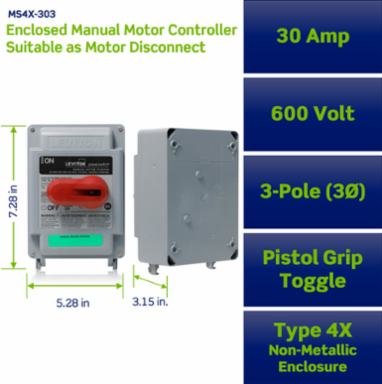

Leviton MS4X-303 30 Amp 3-Pole Manual Motor Controller, 600 Volt, Type 4X, IP67 Rated
- MPN: MS4X-303
- UPC: 078477481608
- PPN: LEV-MS4X-303
CAD
$197.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 Amp, 600 Volt, 3-Pole, Non-Fused Manual Motor Controller, Suitable as Motor Disconnect, Type 4X Thermoplastic Enclosure, IP67-Watertight, NSF Certified
Features

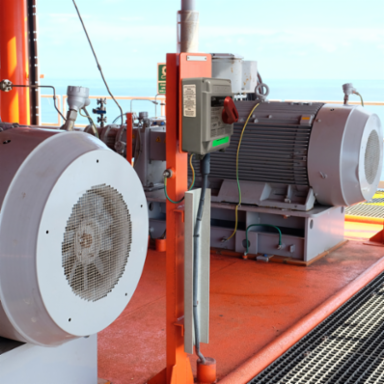

- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | NOM-ANCE |
| UL 60947-4-1 | supersedes UL 508 |
| cUL per CSA C22.2 No. 111 | File #E63969 |
| NEMA | WD-1 & WD-6 |
|---|---|
| NSF | 14159-1 Meat & Poultry Processing Equipment |
| Warranty | 2-Year Limited |
Material Specifications
| Contacts | Silver-Cadmium .031 Thick |
|---|---|
| Terminal Screws | Nickel-Plated Brass 10-32 |
| Enclosure | Thermoplastic Polyester |
|---|
Mechanical Specifications
| Crush Test | 100 lbs |
|---|---|
| Mold Stress Relief | 70ºC for 7 hours |
| Terminal Accom. | #10-#8 AWG |
| Termination | Switch Mechanism Back & Side |
| xxx | Remains in place with 20lb push |
| Impact | 1.2 lb ball dropped from 5 ft |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal ID | T1, T2, T3, L1, L2, L3 marked on back of switch mechanism |
| Torque Range | 20 inch pounds |
Product Features
| Device Type | Enclosed Switch |
|---|
Environmental Specifications
| Dust | Type 12K per UL 50 |
|---|---|
| Hosedown | Type 4X per UL 50 |
| Enclosure Rating | Type 4X |
|---|---|
| Rain | Type 3R per UL 50 |
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Endurance | 6,000 cycles inductive motor type load |
| Grounding | Non-Grounding |
| Pole | 3 |
| Voltage | 600 VAC |
| Dielectric Voltage | Withstands 2200V for 1 min. |
|---|---|
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Temperature Rise | 50ºC Max at full rated current |
