Pass & Seymour

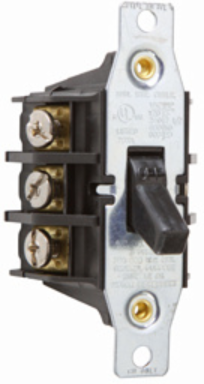

Pass & Seymour 7803MD Three Pole Three Phase AC Manual Controller

Three Pole Three Phase AC Manual Controller
  • MPN: 7803MD
  • UPC: 785007267686
  • PPN: P-S-7803MD

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$67.46/ EA

Description

Three Pole Three Phase AC Manual Controller

Features

  • High Horsepower rating of 20HP
  • Gull-wing shaped brass terminal pressure clamps
  • Constructed of glass-reinforced thermoplastic
  • UL508 and cULus Listing of individual device and assembled device within enclosure
  • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
  • Two-point contact arm design reduces overall unit size
  • Two oversized silver alloy contacts withstand years of use; improve heat dissipation by distributing arc energy
  • One-piece contact carrier constructed of glassreinforced thermoplastic ensures long-lasting ““make and break”” performance

Specifications

Specifications

Depth
1.753 in
Height
3.67 in
Load Type
LED
Country of Origin
Mexico
Voltage
600.0 V
Number of Gangs
1
Switch Type
Toggle
Standard
CSA Listed
Indoor/Outdoor
Indoor
Number of Poles
3-Way
Mounting Type
Wall Box
Type
Manual Controller
Throw Type
Single Throw
Requires Neutral Wire
Yes
Application Sector
Commercial
Environmental Conditions
UL94 V2
Wire Connection Type
Screw Terminals
Terminal Accommodation
#14 AWG - #10 AWG
Special Features
Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect
Finish
Matte
Product Line
Pass & Seymour
Load TypeCFL
Width1.825 in
Amperage30.0 A
Load TypeXenon
Load TypeHalogen
StandardUL Listed
Load TypeUniversal
Number of Phases3.0
Load TypeFluorescent
Load TypeIncandescent
Number of Switches1.0
Wall Plate IncludedNo
Operating Cycles50000.0
Load Rating30 A @ 600 VAC
Application SectorIndustrial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
FeaturesHeavy Duty Zinc Plated Steel Strap
ColorBlack
MaterialThermoplastic
