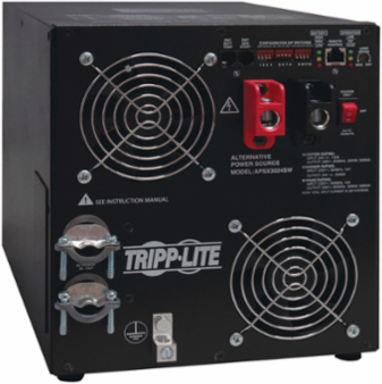

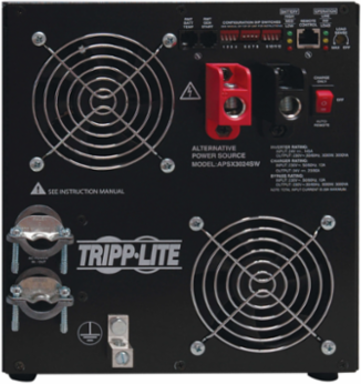

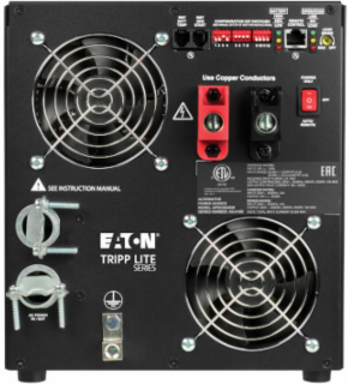

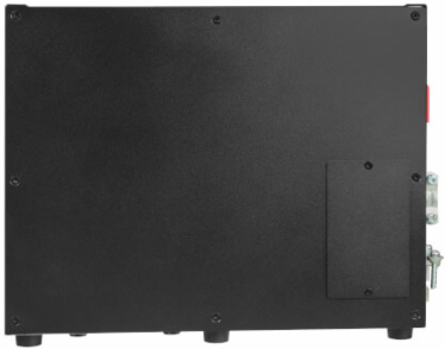

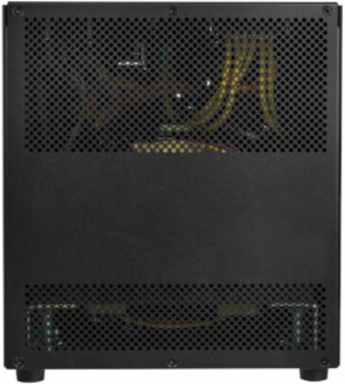

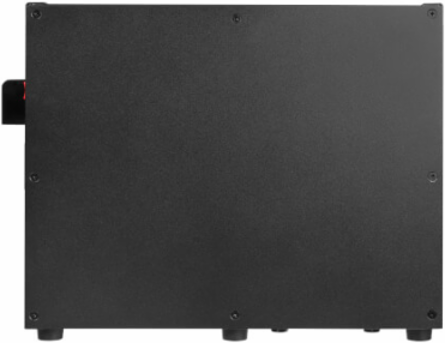

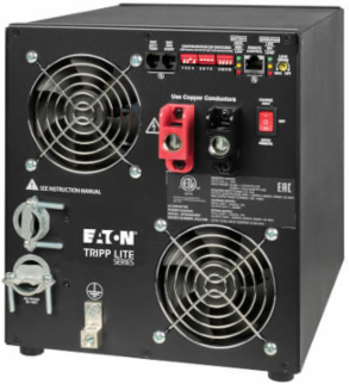

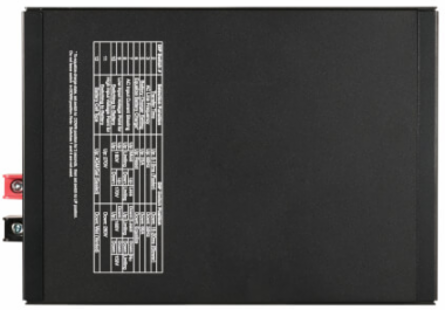

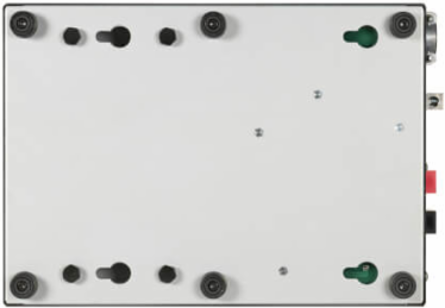

Tripp Lite APSX3024SW 3000W APS X Series 24VDC 230V Inverter/Charger with Pure Sine-Wave Output, Hardwired

3000W APS X Series 24VDC 230V Inverter/Charger with Pure Sine-Wave Output, Hardwired - https://media.province-electric.com/tripplite/2020q1/2d99184fa32bfeec50f0e8feab3fb7e4b3a4d14a-medium.png

3000W APS X Series 24VDC 230V Inverter/Charger with Pure Sine-Wave Output, Hardwired

MPN: APSX3024SW
UPC: 037332141071
PPN: TRP-APSX3024SW

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4133.31/ EA

Qty:

Loading add to cart quantity...

Description

Portable 3000W power source for tools, saws, pumps, portable lighting, appliances and computer equipment as a vehicle inverter, standalone AC power source or extended-run UPS. Ideal for mobile, emergency and remote sites.

Features

Delivers pure sine-wave 230V AC power from AC or DC source
3000W continuous output power; 6000W peak power
Auto-transfer switching option for UPS operation
Protects against blackouts, surges and EMI/RFI line noise
Rugged steel housing resists moisture and impact
2-year limited warranty

Specifications

Battery

Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet or gel type batteries

Battery Pack Accessory (Optional): 98-121 sealed lead acid battery (optional)

Expandable Runtime: Yes

DC System Voltage (VDC)24

Battery ChargeSelectable 23 / 90 amp

Certifications

Certifications: Tested to UL1741, RoHS

Physical

Cooling Method: Fan

Shipping Dimensions (hwd / in.): 20.08 x 18.43 x 22.52

Unit Dimensions (hwd / in.): 10.08 x 8.90 x 12.40

Material of ConstructionMetal

Shipping Weight (lbs.)87.00

Unit Weight (lbs.)64.8

User Interface, Alerts & Controls

Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Switches3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterrupt

Voltage Regulation

Voltage Regulation Description: Includes automatic voltage regulation to correct brownouts and overvoltages back to usable levels

Brownout Correction: Brownouts are automatically boosted by 10% and 20%

Overvoltage CorrectionOvervoltages are automatically reduced by 10%

Input

Nominal Input Voltage(s) Supported: 230V AC

Maximum Input Amps: 28

Voltage Compatibility (VAC): 230

Recommended Electrical ServiceDC INPUT: Requires 24VDC input source capable of delivering 145A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation).

Input Connection TypeDC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate

Voltage Compatibility (VDC)24

Output

Frequency Compatibility: 50 / 60 Hz

Pure Sine Wave Output: Yes

Nominal Output Voltage(s) Supported: 230V

Continuous Output Capacity (Watts): 3000

Output Voltage Regulation: LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 230 VAC (+/-5%).

Frequency Compatibility Details50 or 60 Hz (user-selectable)

Output (Watts)3000

Output ReceptaclesHardwire

Peak Output Capacity (Watts)6000

Output Frequency Regulation50/60 Hz (+/- 0.3 Hz)

Environmental

Relative Humidity: 0-95% non-condensing

Operating Temperature32-104 Fahrenheit / 0-40 Celcius

Overview

UPC Code: 037332141071

Special Features

TVSS Grounding: Main grounding lug connects inverter/charger to earth or vehicle chassis ground

Warranty

Product Warranty Period (U.S. & Canada): 2-year limited warranty

Line / Battery Transfer

Transfer Time (Line Power to Battery Mode): Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications

High Voltage Transfer to Battery Power: In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V (user adjustable to 270 - see manual).

Low Voltage Transfer to Battery PowerIn 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V).
