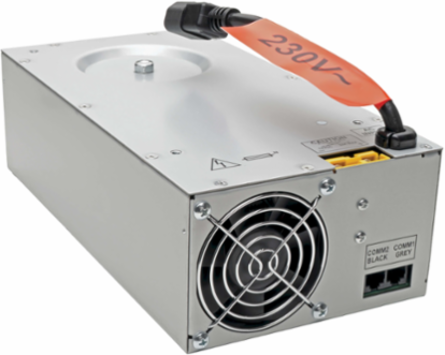

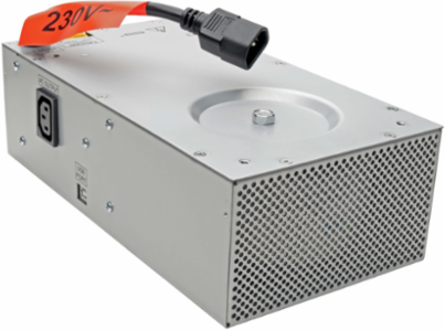

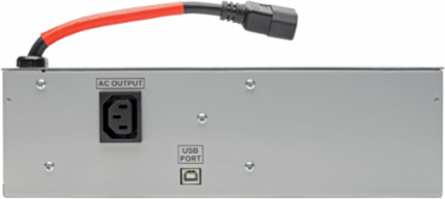

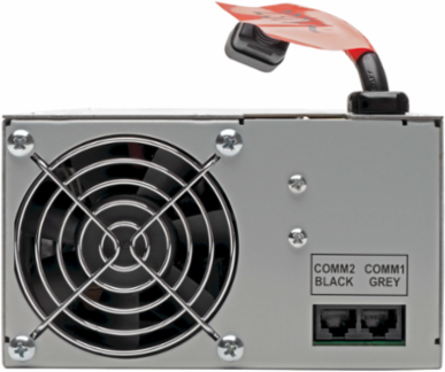

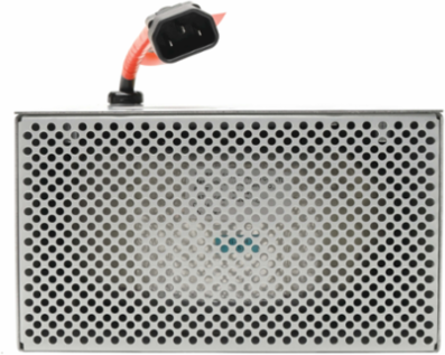

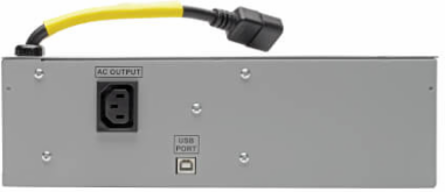

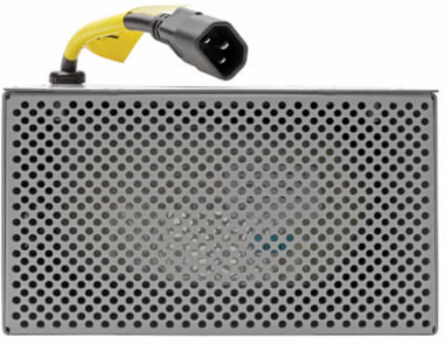

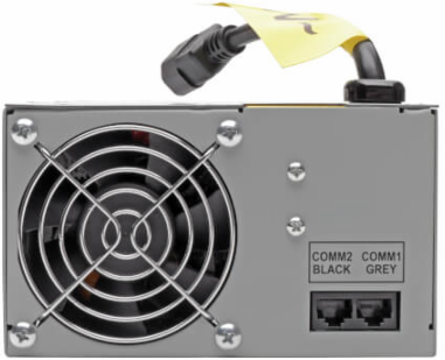

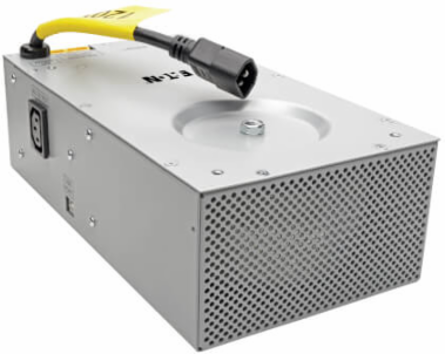

Tripp Lite HCINT350SNR 350W Power Inverter/Charger for Mobile Medical Equipment, 230V - IEC 60601-1
Tripp Lite HCINT350SNR 350W Power Inverter/Charger for Mobile Medical Equipment, 230V - IEC 60601-1
- MPN: HCINT350SNR
- UPC: 037332140210
- PPN: TRP-HCINT350SNR
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3389.69/ EA
Description
350W Power Inverter/Charger for Mobile Medical Equipment, 230V - IEC 60601-1
Features
- All-in-one inverter/charger/controller powers equipment on mobile medical carts
- Approved for use inside and outside patient care areas
- Approved to EN60601-1-2:2015, 4th Edition
- Works with sealed lead acid (SLA) batteries to fit your power requirements
- Internal ATS powers connected equipment and recharges battery simultaneously
- Free PowerAlert® software protects valuable patient data from loss or corruption
- 2-year limited warranty
- 350W 230V Medical-Grade Mobile Power Inverter/Charger for Medical Carts
- Medical Inverter Provides IEC 60601-1 Compliance for All Connected Electronic Devices
- Smart Charging System for Long Battery Life
- Combats Electromagnetic Interference That Can Harm Equipment
- Superior Design for Simple Fuss-Free Use
- Rugged Construction Sure to Stand Up to Demanding Environments
Specifications
Surge / Noise Suppression
- EMI / RFI AC Noise Suppression
- Yes
Battery
- Expandable Battery Runtime
- Yes
- Full Load Runtime
- Up to 6 hours typical runtime in standard configuration. Runtime varies depending on battery condition and load
- Expandable Runtime
- Yes
DC System Voltage (VDC)12
Battery ChargeEqual to discharge time. Includes advanced 3-stage (9-20A) battery charger
Certifications
- UPS Certifications
- UPS Certifications Tested to IEC60601-1 (medical grade)
CertificationsTested, certified and compliant to IEC60601-1, CAN/CSA-C22.2 No. 601.1-M90 and UL 1778 by TUV
Physical
- Cooling Method
- Fan
- Primary Form Factor
- Tower
- Unit Dimensions (hwd / in.)
- 11.5 x 6 x 3.5
Material of ConstructionSteel
Shipping Dimensions (hwd / in.)7.40 x 8.70 x 13.80
Unit Weight (lbs.)14
User Interface, Alerts & Controls
- Front Panel LEDs
- On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status (Sold Separately)
- Audible Alarm
- Low Battery Alarm
SwitchesOn Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch (Sold Separately)
Input
- Nominal Input Voltage(s) Supported
- 230V AC
- Voltage Compatibility (VAC)
- 230
- Input Phase
- Single-Phase
Recommended Electrical Service15A 230V
Voltage Compatibility (VDC)12
Output
- Frequency Compatibility
- 50 Hz
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Output Receptacles
- (1) C13
- Peak Output Capacity (Watts)
- 350
Pure Sine Wave OutputYes
Nominal Output Voltage(s) Supported230V
Continuous Output Capacity (Watts)350
Communications
- Network Monitoring Port
- USB
Communications InterfaceUSB
Overview
- UPC Code
- 037332140210
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Optional CoverageWEXT1E - 1 year extended warranty WEXT2E - 2 year extended warranty WEXT3E - 3 year extended warranty
