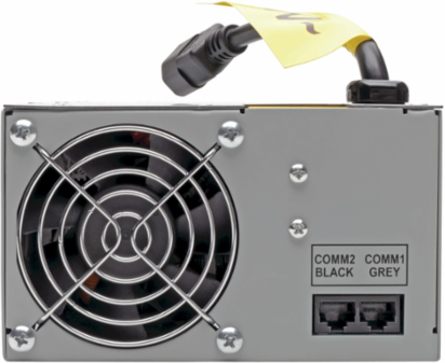

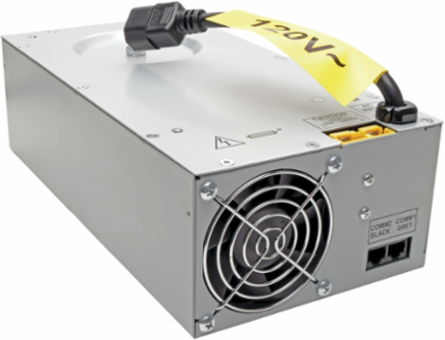

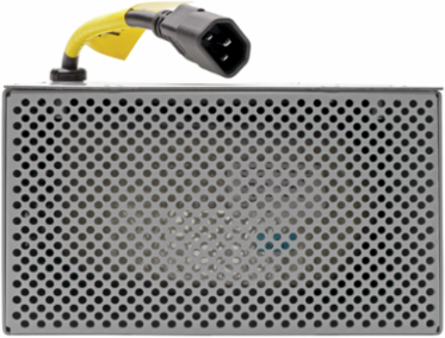

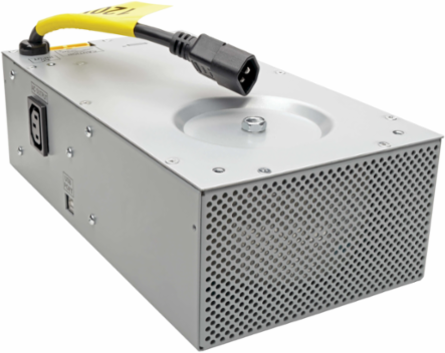

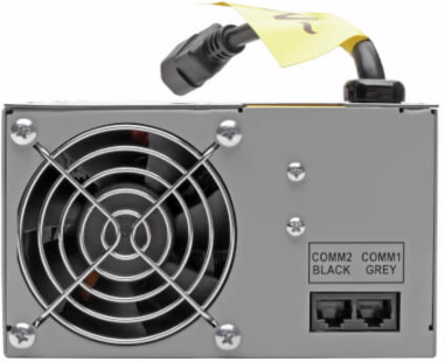

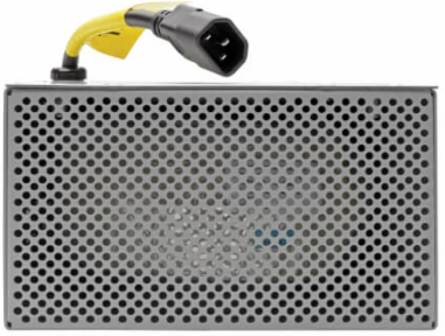

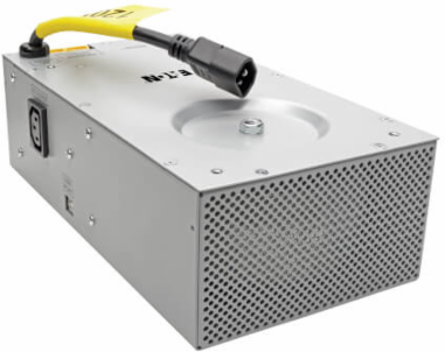

Tripp Lite HC350SNR 300W Power Inverter/Charger for Mobile Medical Equipment, 120V - IEC 60601-1
Tripp Lite HC350SNR 300W Power Inverter/Charger for Mobile Medical Equipment, 120V - IEC 60601-1
- MPN: HC350SNR
- UPC: 037332140203
- PPN: TRP-HC350SNR
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3205.79/ EA
Description
300W Power Inverter/Charger for Mobile Medical Equipment, 120V - IEC 60601-1
Features
- All-in-one inverter/charger/controller powers equipment on mobile medical carts
- IEC 60601-1 compliance for use inside and outside patient care areas
- Approved to EN60601-1-2:2015 , 4th Ed.
- Works with sealed lead acid (SLA) batteries to fit your power requirements
- Internal ATS powers connected equipment and recharges battery simultaneously
- Free PowerAlert® software protects valuable patient data from loss or corruption
- 2-year limited warranty
- 300W 120V Medical-Grade Mobile Power Inverter/Charger for Medical Carts
- Medical Inverter Provides IEC 60601-1 Compliance for All Connected Electronic Devices
- Smart Charging System for Long Battery Life
- Combats Electromagnetic Interference That Can Harm Equipment
- Superior Design for Simple Fuss-Free Use
- Rugged Construction Sure to Stand Up to Demanding Environments
Specifications
Surge / Noise Suppression
- EMI / RFI AC Noise Suppression
- Yes
Battery
- Expandable Battery Runtime
- Yes
- Full Load Runtime
- Up to 6 hours typical runtime in standard configuration. Runtime varies depending on battery condition and load
- Expandable Runtime
- Yes
DC System Voltage (VDC)12
Battery ChargeEqual to discharge time. Includes advanced 3-stage (9-20A) battery charger
Certifications
- UPS Certifications
- UPS Certifications Tested to IEC60601-1 (medical grade)
CertificationsTested, certified and compliant to IEC60601-1, CAN/CSA-C22.2 No. 601.1-M90 and UL 1778 by TUV
Physical
- Cooling Method
- Fan
- Shipping Dimensions (hwd / in.)
- 7.25 x 15.50 x 9.25
- Unit Weight (lbs.)
- 14
Material of ConstructionSteel
Unit Dimensions (hwd / in.)11.5 x 6 x 3.5
User Interface, Alerts & Controls
- Front Panel LEDs
- On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status (Sold Separately)
- Audible Alarm
- Low Battery Alarm
SwitchesOn Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch (Sold Separately)
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Connection Type
- C14
- Voltage Compatibility (VDC)
- 12
Recommended Electrical Service15A 120V
Voltage Compatibility (VAC)120
Input Cord Length (ft.)0.5
Output
- Frequency Compatibility
- 60 Hz
- Output AC Waveform (Battery Mode)
- Pure Sine wave

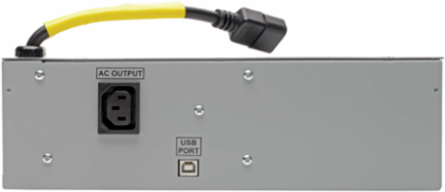

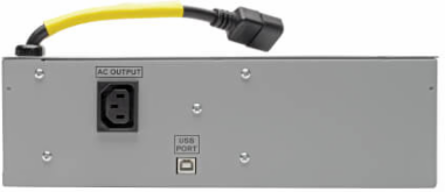

- Output Receptacles
- (1) C13
- Peak Output Capacity (Watts)
- 350
Pure Sine Wave OutputYes
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)300
Individually Controllable Load BanksNo
Communications
- Network Monitoring Port
- USB
Communications InterfaceUSB
Overview
- UPC Code
- 037332140203
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Optional CoverageWEXT1E - 1 year extended warranty WEXT2E - 2 year extended warranty WEXT3E - 3 year extended warranty
