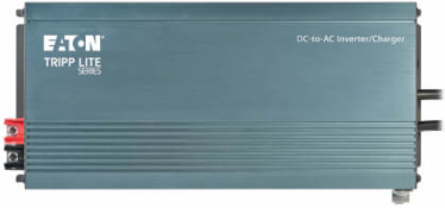

Tripp Lite APS700HF 700W PowerVerter APS 12VDC 120V Inverter/Charger with Auto-Transfer Switching, 1 Outlet

MPN: APS700HF
UPC: 037332126948
PPN: TRP-APS700HF

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$668.59/ EA

Qty:

Loading add to cart quantity...

Description

Portable single-outlet power source for small power applications, such as power tools and computers, as a vehicle inverter, standalone AC power source or extended-run UPS. Ideal for RVs, fleet vehicles and conversion vans.

Features

Delivers clean 120V AC power from AC or DC power source
700W continuous output power; 1400W peak power
Auto-transfer switching option for UPS operation
Protects against blackouts, surges and EMI/RFI line noise
Compact, lightweight aluminum housing weighs just 4 lb.
1-year limited warranty

Specifications

Surge / Noise Suppression

AC Suppression Joule Rating: 300

Battery

Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet, gel or SLA type batteries

Battery Charge: 6A max, steps down to float level to maintain

DC System Voltage (VDC)12

Expandable RuntimeYes

Physical

Cooling Method: Multi-speed fan

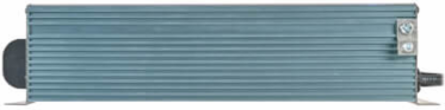

Material of Construction: Extruded aluminum

Shipping Weight (lbs.): 5.50

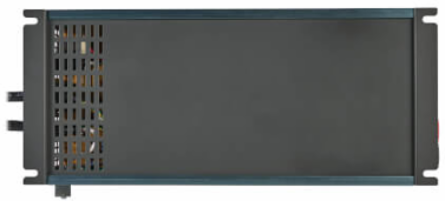

Form Factors SupportedIntegrated mounting feet for easy installation

Shipping Dimensions (hwd / in.)8.50 x 14.50 x 8.50

Unit Weight (lbs.)4

User Interface, Alerts & Controls

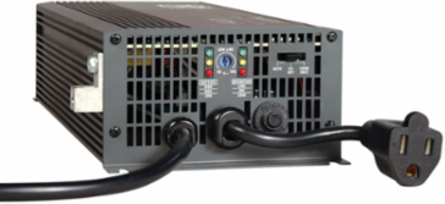

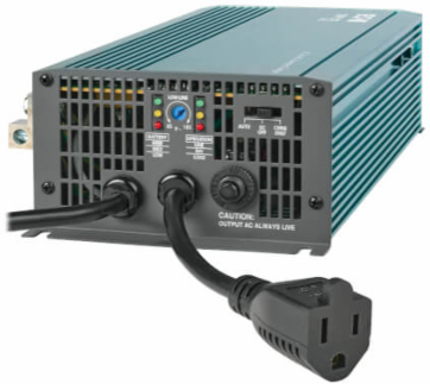

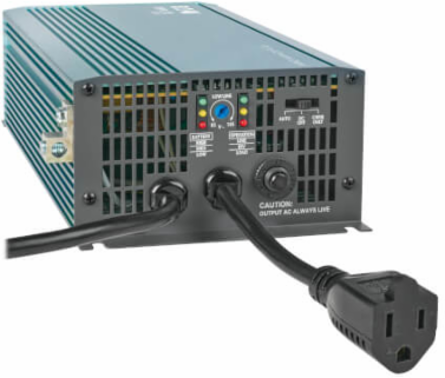

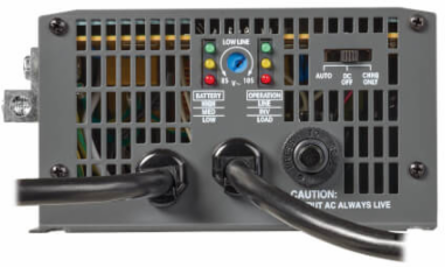

Front Panel LEDs: 6 diagnostic LEDs indicate battery voltage level (high, medium & low) and operation (line, inverter, load)

Switches3 position DC off, auto (inverter or AC) and charge-only switch enables simple operation

Input

Nominal Input Voltage(s) Supported: 120V AC

Maximum Input Amps / Watts: DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 8.4 amps at 120VAC with full inverter and charger load (1.4A max charger-only)

Voltage Compatibility (VAC): 120

Recommended Electrical ServiceDC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120V AC recommended

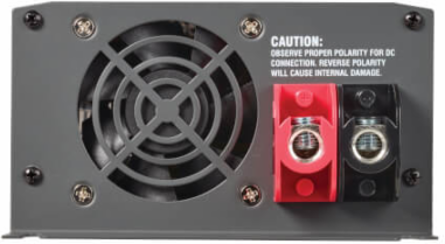

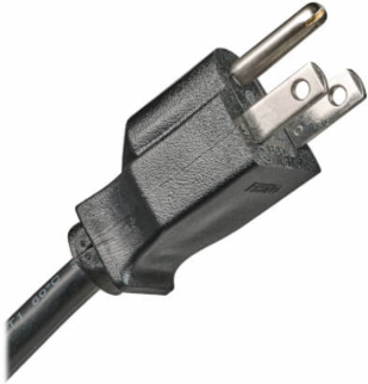

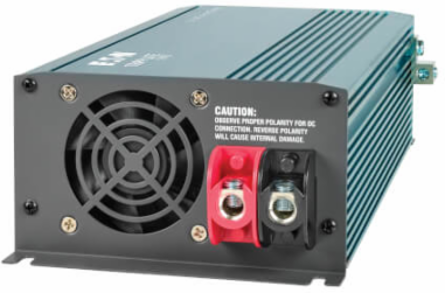

Input Connection TypeDC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: NEMA 5-15P input plug

Voltage Compatibility (VDC)12

Output

Frequency Compatibility: 60 Hz

Output (Watts): 700

Output Receptacles: (1) 5-15R

Peak Output Capacity (Watts): 1400

Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)

Pure Sine Wave OutputNo

Nominal Output Voltage(s) Supported120V

Continuous Output Capacity (Watts)700

Output Voltage RegulationLINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).

Overload ProtectionIncludes 7A output breaker for AC output loads

Environmental

Relative Humidity: 0-95% non-condensing

Overview

UPC Code: 037332126948

Warranty

Product Warranty Period (U.S. & Canada): 1-year limited warranty

Line / Battery Transfer

Transfer Time (Line Power to Battery Mode): 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 139V

Low Voltage Transfer to Battery PowerIn AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 85V (user adjustable to 85, 95V - see manual)
