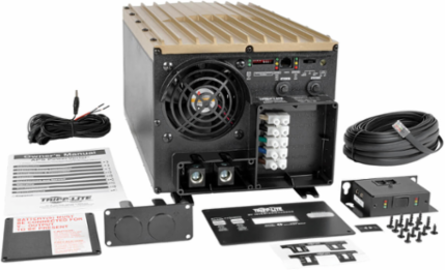

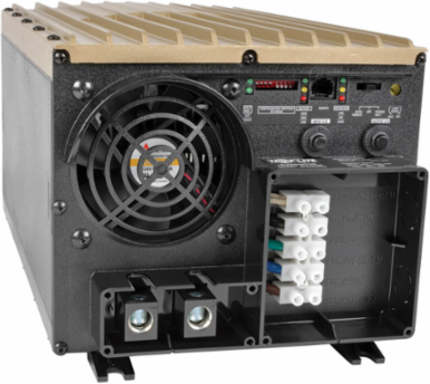

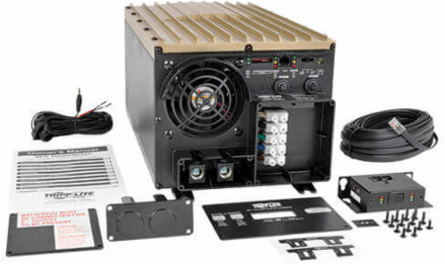

Tripp Lite APSINT3636VR 3600W APS INT Series 36VDC 230V Inverter/Charger with Auto-Transfer Switching, Line-Interactive AVR

3600W APS INT Series 36VDC 230V Inverter/Charger with Auto-Transfer Switching, Line-Interactive AVR - https://media.province-electric.com/tripplite/2020q1/6fbc526cf76c1deec4933631f7b0a8f141f5669a-medium.png

3600W APS INT Series 36VDC 230V Inverter/Charger with Auto-Transfer Switching, Line-Interactive AVR

MPN: APSINT3636VR
UPC: 037332095985
PPN: TRP-APSINT3636VR

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3190.43/ EA

Qty:

Loading add to cart quantity...

Description

Portable line-interactive power source for any type of equipment from power tools to computers as a vehicle inverter, standalone AC power source or extended-run UPS. Ideal for RVs, commercial and fleet vehicles and emergency vehicles.

Features

Delivers clean 230V AC power from AC or DC power source
3600W continuous output power; 7200W peak power
Auto-transfer switching option for UPS operation
Corrects brownouts and overvoltages without using battery power
Includes Tripp Lite APSRM4 remote control module
1-year limited warranty

Specifications

Battery

Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet or gel type batteries

Battery Pack Accessory (Optional): 98-121 sealed lead acid battery (optional)

Expandable Runtime: Yes

DC System Voltage (VDC)36

Battery Charge30-amp high/7.5-amp low

Certifications

Certifications: RoHS

Physical

Cooling Method: Multi-speed fan

Material of Construction: Polycarbonate

Shipping Weight (lbs.): 64.60

Unit Weight (lbs.): 58

Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Shipping Dimensions (hwd / in.)13.40 x 14.50 x 20.90

Unit Dimensions (hwd / in.)7 x 8.5 x 14

User Interface, Alerts & Controls

Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Switches3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Voltage Regulation

Voltage Regulation Description: Includes automatic voltage regulation to correct brownouts and over-voltages back to usable levels

Brownout Correction: Brownouts are automatically boosted by 10%

Overvoltage CorrectionOver-voltages are automatically reduced by 10%

Input

Nominal Input Voltage(s) Supported: 230V AC

Maximum Input Amps / Watts: DC INPUT: Full continuous load - 114A at 36VDC. AC INPUT: 26 amps at 230VAC with full inverter and charger load (10.4A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)

Voltage Compatibility (VAC): 230

Recommended Electrical ServiceDC INPUT: Requires 36VDC input source capable of delivering 114A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 300A minimum battery system fusing is recommended.

Input Connection TypeDC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate

Voltage Compatibility (VDC)36

Output

Frequency Compatibility: 50 Hz

Output (Watts): 3600

Output Receptacles: Hardwire

Peak Output Capacity (Watts): 7200

Output Frequency Regulation: 50 Hz (+/- 0.3 Hz)

Pure Sine Wave OutputNo

Nominal Output Voltage(s) Supported230V

Continuous Output Capacity (Watts)3600

Output Voltage RegulationLINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%).

Overload ProtectionIncludes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads.

Environmental

Relative Humidity: 0-95% non-condensing

Overview

UPC Code: 037332095985

Special Features

Load Sensing: Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.

Warranty

Product Warranty Period (U.S. & Canada): 1-year limited warranty

Line / Battery Transfer

Transfer Time (Line Power to Battery Mode): 20 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 259V (user adjustable to 264 - see manual)

Low Voltage Transfer to Battery PowerIn AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182V - see manual)
