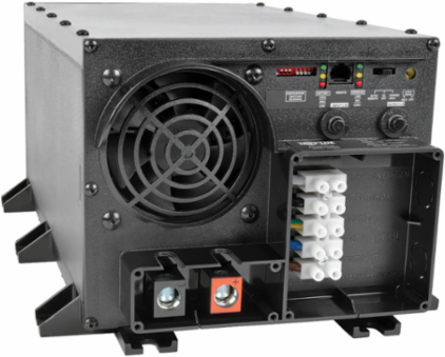

Tripp Lite APS2424 2400W PowerVerter APS 24VDC 120V Inverter/Charger with Auto-Transfer Switching, Hardwired

MPN: APS2424
UPC: 037332090256
PPN: TRP-APS2424

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2559.52/ EA

Qty:

Loading add to cart quantity...

Description

Portable 2400W power source for any type of equipment from power tools to computers as a vehicle inverter, standalone AC power source or extended-run UPS. Ideal for RVs, commercial and fleet vehicles and emergency vehicles.

Features

Delivers clean 120V AC power from AC or DC power source
2400W continuous output power; 4800W peak power
Auto-transfer switching option for UPS operation
Protects against blackouts, surges and EMI/RFI line noise
Rugged polycarbonate housing resists moisture and impact
1-year limited warranty

Specifications

Surge / Noise Suppression

AC Suppression Joule Rating: 600

Battery

Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet or gel type batteries

Battery Pack Accessory (Optional): 98-121 sealed lead acid battery (optional)

Expandable Runtime: Yes

DC System Voltage (VDC)24

Battery Charge14A/55A (selectable)

Physical

Cooling Method: Multi-speed fan

Material of Construction: Polycarbonate

Shipping Weight (lbs.): 44.00

Unit Weight (lbs.): 39

Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Shipping Dimensions (hwd / in.)12.90 x 14.80 x 21.40

Unit Dimensions (hwd / in.)7.25 x 8.5 x 16.25

User Interface, Alerts & Controls

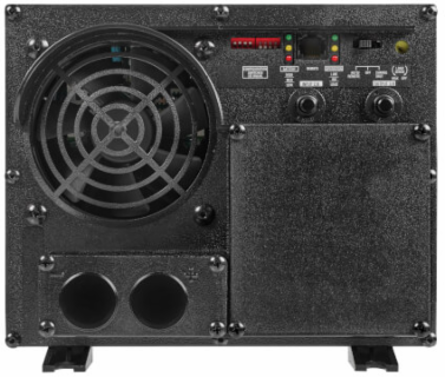

Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Switches3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Input

Nominal Input Voltage(s) Supported: 120V AC

Maximum Input Amps / Watts: DC INPUT: Full continuous load - 112A at 24VDC. AC INPUT: 44 amps at 120VAC with full inverter and charger load (24A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load

Voltage Compatibility (VAC): 120

Recommended Electrical ServiceDC INPUT: Requires 24VDC input source capable of delivering 112A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).

Input Connection TypeDC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate

Voltage Compatibility (VDC)24

Output

Frequency Compatibility: 60 Hz

Output (Watts): 2400

Output Receptacles: Hardwire

Peak Output Capacity (Watts): 4800

Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)

Pure Sine Wave OutputNo

Nominal Output Voltage(s) Supported120V

Continuous Output Capacity (Watts)2400

Output Voltage RegulationLINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).

Overload ProtectionIncludes 30A input breaker dedicated to the charging system and 20A output breaker for AC output loads

Environmental

Relative Humidity: 0-95% non-condensing

Overview

UPC Code: 037332090256

Special Features

Load Sensing: Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.

Warranty

Product Warranty Period (U.S. & Canada): 1-year limited warranty

Line / Battery Transfer

Transfer Time (Line Power to Battery Mode): 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)

Low Voltage Transfer to Battery PowerIn AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
