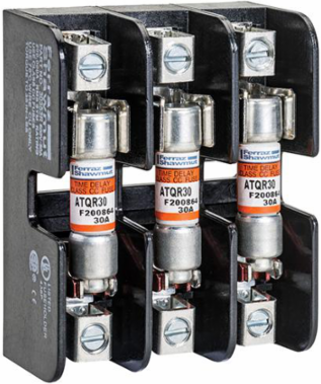

Mersen 30314 Midget Class CC Fuse Block, 30 Amp, GFPC Body, 600 VAC
- MPN: 30314
- UPC: 782001758882
- PPN: FER-30314
CAD
$59.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2" x 13/32" midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glass-filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Specifications
Product Details
| CSA Certification | 6225-01 032169_0_000 |
|---|---|
| AC Voltage | 600 VAC |
| CE conformity | Yes |
| Class | Midget Class CC |
| Ampere Range | 0 - 30 A |
| Lead Free | Yes |
| Body Material | GFPC |
|---|---|
| ROHS Compliant | Yes |
| Materials Contact | Tin-plated Copper |
| UL Certification | E52283 IZLT.E52283E52283 IZLT2.E52283 |
| Connection Terminal Type | Screw With Double Quick Connects Pressure Plate With Double Quick Connects Box |
| Mounting | Screw Mount Or DIN-rail |
