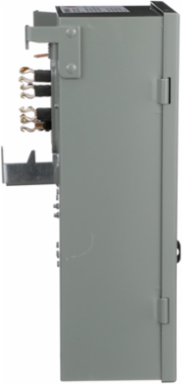

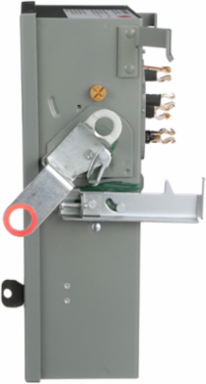

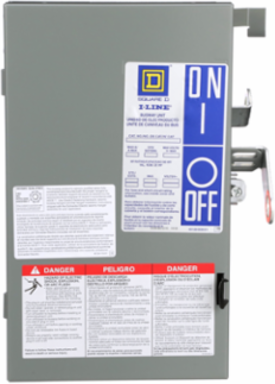

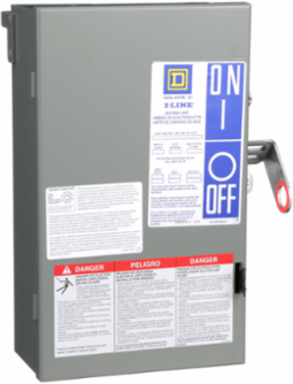

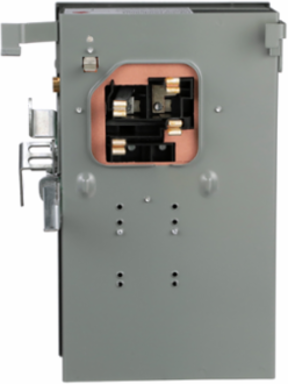

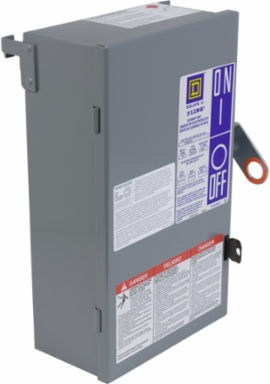

Square D PQ4206G I-Line Busway Plug-in Unit, Fusible, 60A, 240V AC, 4 Pole
- MPN: PQ4206G
- UPC: 785901309833
- PPN: SCH-PQ4206G
CAD
$2851.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This 4 pole I-Line fusible plug in unit is for up to 60A 120/208 VAC Class H fuses. I-Line busway is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- I-Line
Product Or Component Typeplug-in unit
Complementary
- Disconnector Device Type
- fusible disconnect
- Busbar Description
- ground
- [Ie] Rated Operational Current
- 60 A
- Number Of Poles
- 4
[Ue] Rated Operational Voltage240 V AC || 208 V AC
Fuse TypeH, K, J or R
Electrical Connectionplug-in
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407016EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1407016EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- UL || CSA
