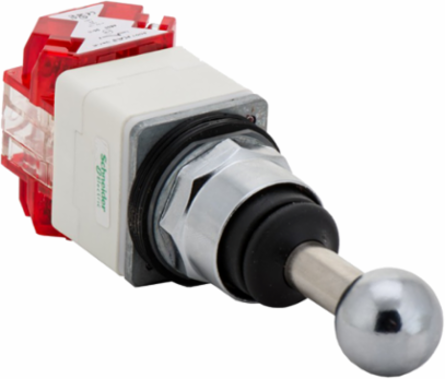

Schneider Electric 9001K31 Harmony 9001K Joystick Controller Head, Metal, 30mm, IP66, Spring Return
- MPN: 9001K31
- UPC: 785901077107
- PPN: SCH-9001K31
CAD
$327.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Certificate Agency
- NEMA, UL 508
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Bezel Material
- metal
- Contacts Type And Composition
- without contact block
- Mounting Diameter
- 30 mm
- Operator Direction Information
- 2 directions
- Overvoltage Category
- II conforming to IEC 61140
- Product Or Component Type
- head for joystick controller
- Range Of Product
- Harmony 9001K
- Returnability
- Yes
- Shape Of Signaling Unit Head
- octagonal
- Sustainable Packaging
- No
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2503027EN
- Package Weight(Lbs)
- 245.000 g
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Compatibility Code9001K
Device Short Name9001K
Operating Positionvertical
Operator Profile80 mm long operating shaft
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
Returnto centre
Sale Per Indivisible Quantity1
Shock Resistance50 gn IEC 60068-2-27
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- head for joystick controller
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000632
ETIM 9EC000632
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
