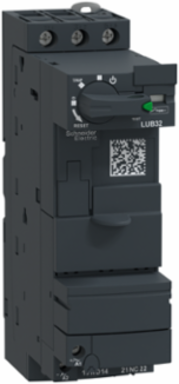

Schneider Electric LUB32 TeSys Ultra Non-Reversing Power Base, 3P, 1NO + 1NC, 32A, 690V
- MPN: LUB32
- PPN: SCH-LUB32
CAD
$656.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
Features
- This versatile non-reversing base is rated for continuous operation up to 32 Amps and is compatible with operational voltages up to 690 V AC. It delivers an exceptionally high breaking capacity, achieving a short-circuit rating of 50 kA at 440 V conforming to IEC 60947-6-2, making it perfectly suited for driving large industrial fans, pumps, and conveyor motors.
- The LUB32 serves as an unpopulated power foundation that must be paired with a plug-in control coil (matching your specific AC or DC control circuit voltage) and a luc control unit (which establishes the precise motor protection parameters and current range). These sub-components snap directly into the center cavity of the base without any wiring or tools, allowing for fast, on-the-fly field changes.
- The power base comes standard with a integrated auxiliary contact arrangement consisting of 1 NO (Normally Open) + 1 NC (Normally Closed) status contacts. These contacts mechanically mirror the state of the main power poles, allowing integration teams to directly route reliable state feedback to a central PLC or feed localized panel-mount running lamps.
- Designed with robust screw clamp terminals for both the main power lines and control connections, this base features a compact 45mm frame width that snaps easily onto standard 35mm DIN rails. It carries an IP20 finger-safe environmental protection rating and satisfies strict international safety regulations including UL, CSA, CE, and CCC listings ensuring your modular motor control center effortlessly clears municipal code inspections.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Depth | 126 mm |
|---|
Complementary Attributes
| Maximum Operating Rate | 3600 cyc/h |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | motor control, motor protection |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Tightening Torque | control circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips no 1 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm |
| Utilisation Category | AC-43, AC-44, AC-41 |
| [Ics] Rated Service Breaking Capacity | 50 kA 230 V, 50 kA 440 V10 kA 500 V4 kA 690 V |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2 3)600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.4525068805111509, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.06424103668090721 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 18 kg CO2 eq., 18.290275694507795 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2406038EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1945 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | LUB |
| Energy Efficiency Optimized | False |
| Heat Dissipation | 3-3 W control circuit with LUCA, LUCB, LUCC, LUCD1.8-1.8 W control circuit with LUCM |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Mechanical Durability | 15 Mcycles |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | non reversing power base |
| Range | TeSys |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-28 kV 4 on contact IEC 61000-4-2 |
| Returnability | Yes |
| Shock Resistance | 10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27 |
| Suitability For Isolation | yes |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2406038EN |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; France, FR |
| Recyclability Potential In % | 56 |
| Width Nominal | 45 mm |
| [Ith] Conventional Free Air Thermal Current | 32 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kVIEC 60947-6-2 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 847.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Fire Resistance | 960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12 |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N |
| Typical Current Consumption | 220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD280 mA 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD280 mA 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD45 mA 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD200 mA 24 V DC I maximum while closing with LUCM, 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 25 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 25 mA 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 280 mA 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 45 mA 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 75 mA 24 V DC I rms sealed with LUCM, 80 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 90 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD |
| Certificate Agency | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| [Uc] Control Circuit Voltage | 48...72 V DC, 24 V AC 50/60 Hz, 24 V DC, 48...72 V AC 50/60 Hz, 110...240 V AC 50/60 Hz, 110...220 V DC |
| Connections - Terminals | control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² rigid, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable endpower circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigid, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² flexible with cable endcontrol circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² rigid, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² flexible with cable endpower circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigid, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2.070974475313299, 2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 8 kg CO2 eq., 7.905643470652298 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LUB |
| Fixing Mode | clipped (DIN rail)screw-fixed (plate) |
| Immunity To Microbreaks | 3 ms control circuit |
| Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
| Network Frequency | 40...60 Hz |
| Operating Time | 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit65 ms closing with LUCM control circuit |
| Product Name | TeSys Ultra |
| Protective Treatment | TH IEC 60068 |
| Range Of Product | TeSys Ultra |
| Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Software Version | v6.1 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27 |
| Thermal Current | 32 A |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 273.75 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; France, FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; France, FR |
| Height Nominal | 154 mm |
| [Ie] Rated Operational Current | 32 A <= 440 V23 A 500 V21 A 690 V |
| [Ue] Rated Operational Voltage | 690 V AC power circuit |
| Non-dissipating Shock Wave | 2 kV common mode 48...220 V DC IEC 60947-6-21 kV serial mode 24...240 V AC IEC 60947-6-21 kV serial mode 48...220 V DC IEC 60947-6-22 kV common mode 24...240 V AC IEC 60947-6-2 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD |
|---|---|
| Ip Degree Of Protection | IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone) |
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 28.78364155766545 |
| Environmental Disclosure | ENVPEP2406038EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2406038EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2406038EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | non reversing power base |
|---|
| Range Of Product | TeSys Ultra |
|---|
ETIM
| ETIM 8 | EC001037 |
|---|
| ETIM 9 | EC001037 |
|---|
