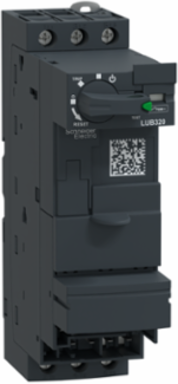

Schneider Electric LUB320 TeSys U Power Base 3P 32A 690V with Auxiliary Contacts 1NO + 1NC
- MPN: LUB320
- PPN: SCH-LUB320
CAD
$627.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U advanced power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Sweden, United States
Depth126 mm
Complementary Attributes
- Maximum Operating Rate
- 3600 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- motor control, motor protection
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Tightening Torque
- control circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips no 1 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
- Utilisation Category
- AC-43, AC-44, AC-41
- [Ics] Rated Service Breaking Capacity
- 50 kA 230 V, 50 kA 440 V10 kA 500 V4 kA 690 V
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-6-2 3)600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4386164685946338, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.06226905680640474
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 18 kg CO2 eq., 18.290275694507795
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LUB
- Fixing Mode
- clipped (DIN rail)screw-fixed (plate)
- Immunity To Microbreaks
- 3 ms control circuit
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Network Frequency
- 40...60 Hz
- Operating Time
- 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit65 ms closing with LUCM control circuit
- Product Name
- TeSys Ultra
- Protective Treatment
- TH IEC 60068
- Range Of Product
- TeSys Ultra
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
- Thermal Current
- 32 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 273.75
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 154 mm
- [Ie] Rated Operational Current
- 32 A <= 440 V23 A 500 V21 A 690 V
- [Ue] Rated Operational Voltage
- 690 V AC power circuit
- Non-dissipating Shock Wave
- 2 kV common mode 48...220 V DC IEC 60947-6-21 kV serial mode 24...240 V AC IEC 60947-6-21 kV serial mode 48...220 V DC IEC 60947-6-22 kV common mode 24...240 V AC IEC 60947-6-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Safe Separation Of Circuit400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Typical Current Consumption220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD280 mA 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD280 mA 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD45 mA 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD200 mA 24 V DC I maximum while closing with LUCM, 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 25 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 25 mA 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 280 mA 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 45 mA 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 75 mA 24 V DC I rms sealed with LUCM, 80 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 90 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
Certificate AgencyCE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Uc] Control Circuit Voltage48...72 V DC, 24 V AC 50/60 Hz, 24 V DC, 48...72 V AC 50/60 Hz, 110...240 V AC 50/60 Hz, 110...220 V DC
Connections - Terminalspower circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigidpower circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigidpower circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable endpower circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable endcontrol circuit: without connection
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.007402649624815, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 7.662967283831802
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2406038EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1945
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeLUB
Energy Efficiency OptimizedFalse
Heat Dissipation3-3 W control circuit with LUCA, LUCB, LUCC, LUCD1.8-1.8 W control circuit with LUCM
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Mechanical Durability15 Mcycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typenon reversing power base
RangeTeSys
Resistance To Electrostatic Discharge8 kV 3 in open air IEC 61000-4-28 kV 4 on contact IEC 61000-4-2
ReturnabilityYes
Shock Resistance10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Suitability For Isolationyes
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2406038EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %56
Width Nominal45 mm
[Ith] Conventional Free Air Thermal Current32 A
[Uimp] Rated Impulse Withstand Voltage6 kVIEC 60947-6-2
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)821.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
- Ip Degree Of Protection
- IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 28.46153115336545
- Environmental Disclosure
- ENVPEP2406038EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2406038EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2406038EN
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- non reversing power base
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC001037
ETIM 9EC001037
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
