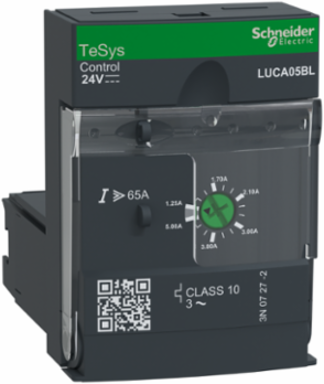

Schneider Electric LUCA05BL TeSys Ultra Control Unit, 3 Phase, 1.25-5A, 690VAC, 24VDC
- MPN: LUCA05BL
- PPN: SCH-LUCA05BL
CAD
$227.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth60 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 20...27 V DC 24 V in operation14.5 V DC 24 V drop-out
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- motor control, motor protection
- Function Available
- protection against phase failure and phase imbalance, manual reset, earth fault protection, protection against overload and short-circuit
- Operating Time
- 70 ms closing with LUB32 control circuit70 ms closing with LUB38 control circuit, 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit70 ms closing with LUB12 control circuit
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- Typical Current Consumption
- 80 mA 24 V DC I rms sealed with LUB38, 130 mA 24 V DC I maximum while closing with LUB12220 mA 24 V DC I maximum while closing with LUB32, 220 mA 24 V DC I maximum while closing with LUB3860 mA 24 V DC I rms sealed with LUB12, 80 mA 24 V DC I rms sealed with LUB32
- Certificate Agency
- CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0603698671756317, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.008570527916106864
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 18 kg CO2 eq., 17.99763128339567
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2406038EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1927
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LUCA
- Energy Efficiency Optimized
- False
- Immunity To Microbreaks
- 3 ms
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Motor Power Kw
- 1.5 kW 400...440 V AC 50/60 Hz2.2 kW 500 V AC 50/60 Hz3 kW 690 V AC 50/60 Hz
- Phase Failure Sensitivity
- yes
- Product Name
- TeSys Ultra
- Product Specific Application
- basic protection requirements for motor starters: overload and short-circuit
- Range
- TeSys
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-28 kV 4 on contact IEC 61000-4-2
- Returnability
- Yes
- Software Version
- v6.1
- Thermal Protection Adjustment Range
- 1.25-5 A
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- R Thermal Protection Adj Range
- 1.25-5 A
- Pep Code
- ENVPEP2406038EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 56
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 113.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Heat Dissipation2-2 W control circuit with LUB123-3 W control circuit with LUB32, 3-3 W control circuit with LUB38
Resistance To Fast Transients2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Thermal Overload Classclass 10 40-60 Hz -25-70 °C IEC 60947-6-2, class 10 40-60 Hz -25-70 °C UL 508
Utilisation CategoryAC-44, AC-43, AC-41
[Ui] Rated Insulation Voltage690 V IEC 60947-6-2600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2762929347230257, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.054708042719846
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLUCA
Fixing Modeplug-in (front face)
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Load Type3-phase motor self-cooled
Network Frequency40...60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typestandard control unit
Protective TreatmentTH IEC 60068
Range Of ProductTeSys Ultra
Resistance To Radiated Fields10 V/m 3 IEC 61000-4-3
Shock Resistance10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Sustainable PackagingYes
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Vibration Resistance2 gn 5-300 Hz power poles open IEC 60068-2-64 gn 5-300 Hz power poles closed IEC 60068-2-6
Pop DirectiveNo POPs
Control Circuit Voltage 3 Control Circuit Voltage24 V
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh269.37
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal66 mm
[Uc] Control Circuit Voltage24 V DC
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-6-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Product Compatibility
- power base LUB12, power base LUB32, power base LUB38, power base LUB120, power base LUB320, power base LUB380reversing contactor breaker LU2B12BL, reversing contactor breaker LU2B32BL, reversing contactor breaker LU2B38BL
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 19.39757265593028
- Circularity Profile
- ENVEOLI2406038EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2406038EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ip Degree Of ProtectionIP20 front panel and wired terminals IEC 60947-1, IP20 other faces IEC 60947-1IP40 front panel outside connection zone IEC 60947-1
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2406038EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- standard control unit
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC000617
ETIM 9EC000617
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
