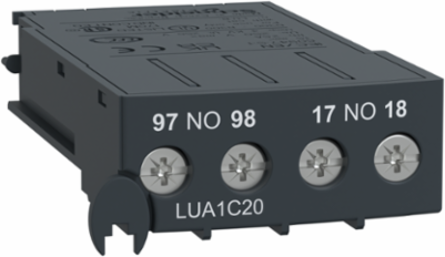

Schneider Electric LUA1C20 TeSys Ultra Auxiliary Contact Block, 2NO, 690VAC/DC
- MPN: LUA1C20
- PPN: SCH-LUA1C20
CAD
$64.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 1NO contact for open/close status (OF contact) and 1NO contact for tripping status (SD contact), rated up to 5A 250V AC/DC. To be inserted in the provided location of the power base.
Features
- This advanced auxiliary contact block features a 2 NO (Normally Open) composition designed specifically for dual status tracking: one contact functions as an open/close status indicator (OF contact) while the second acts as a dedicated fault signaling trip indicator (SD contact). By separating mechanical status from electrical faults, your control automation system can immediately distinguish a normal shutdown from an overload event, ensuring smarter motor management and faster diagnostics.
- Engineered to withstand demanding industrial control environments, this signaling block supports an operational voltage of up to 250V AC/DC with a conventional free air thermal current rating of up to 2.5A. Furthermore, it features a highly reliable low-voltage threshold of 17V with a minimum switching current of 5mA, ensuring flawless signal transmission to PLCs and digital control modules without the risk of contact oxidation or data drops.
- Outfitted with robust, industrial-grade screw clamp terminals, the block guarantees secure and vibration-resistant wire retention even in high-vibration machinery environments. The accessible terminal positioning ensures rapid, straightforward field wiring and effortless maintenance checks, minimizing downtime during routine panel retrofits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, Germany, France, Mexico, Sweden, United States
Complementary Attributes
- Minimum Switching Current
- 5 mA
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Signalling Function
- fault signalling, indicating rotary knob in ready position
- [Ui] Rated Insulation Voltage
- 250 V CSA, 250 V IEC 60947-5-1, 250 V UL
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LUA1
- Energy Efficiency Optimized
- False
- Product Or Component Type
- auxiliary contact
- Range Of Product
- TeSys Ultra
- Sustainable Packaging
- No
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage<= 250 V AC, <= 250 V AC, <= 250 V DC, <= 250 V DC<= 250 V AC, <= 250 V AC, <= 250 V DC
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLUA1
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminalsscrew clamp terminals
Package Weight(Lbs)25.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- auxiliary contact
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
