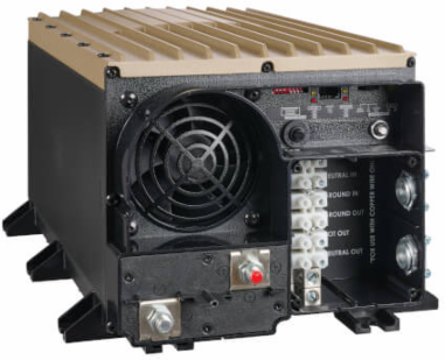

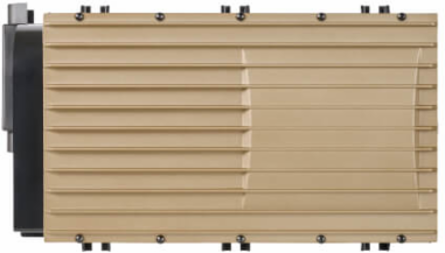

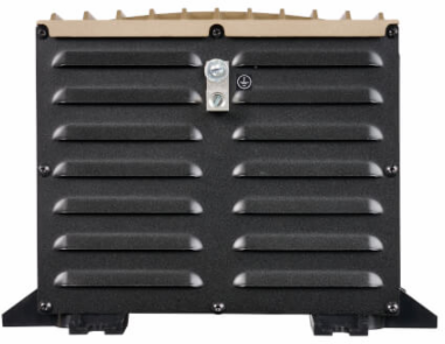

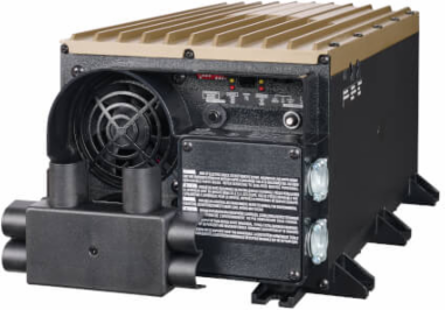

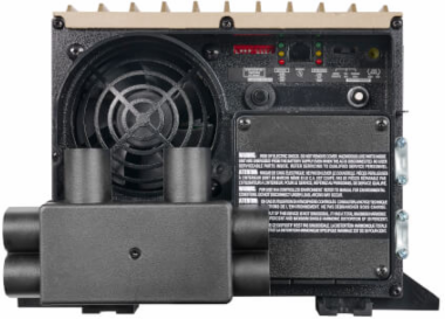

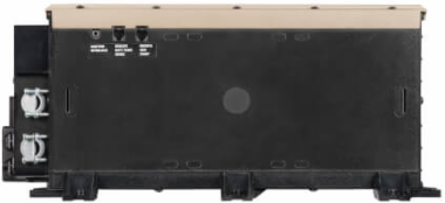

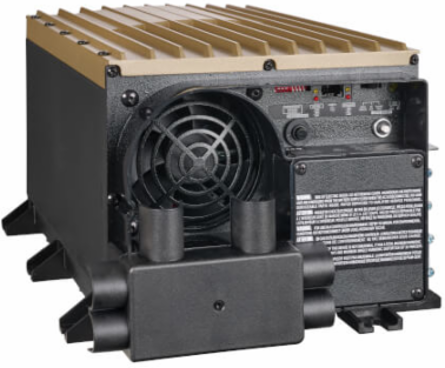

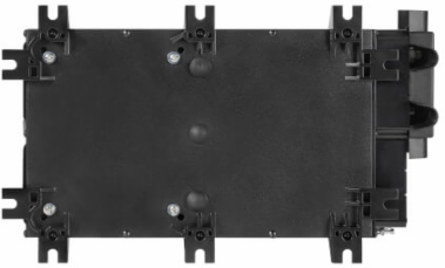

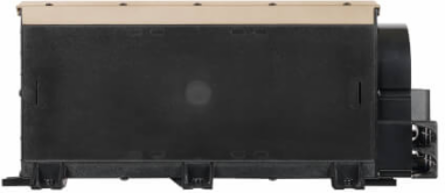

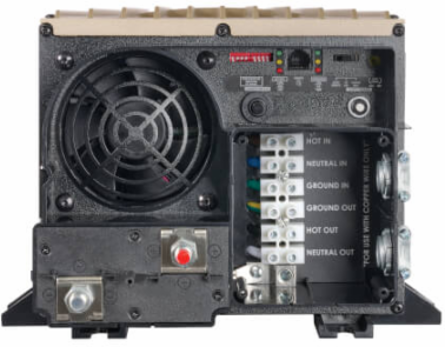

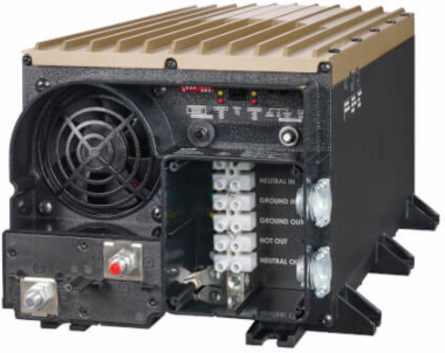

Tripp Lite MRV2012UL PowerVerter 2000W 120V 12VDC Inverter/Charger, Hardwired, Auto-Transfer, 3-Stage Charging
- MPN: MRV2012UL
- UPC: 037332149121
- PPN: TRP-MRV2012UL
CAD
$2531.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerVerter 2000W 120V 12VDC RV Inverter/Charger with Auto-Transfer Switching, Hardwired, UL458
Features
- Auto-transfer switching between AC input and inverter output
- Hardwire installation for RV applications
- Runtime expandable with additional user-supplied wet or gel batteries
- Optional load-sense function enables automatic inverter shutoff and startup based on connected load
- 3-position on/off/remote switch with optional remote control via APSRM4 accessory (sold separately)

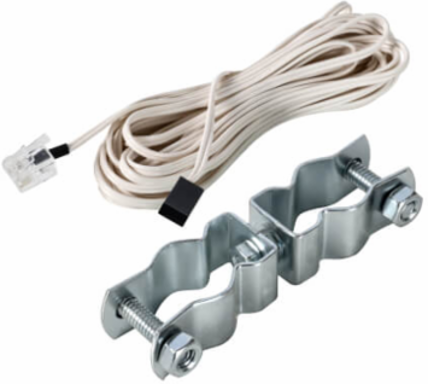

- Includes battery temperature sensor cable and conduit hanger
Documentation & Downloads
Specifications
Additional
- Continuous Output Power
- 2000W
- OverPower Output
- 3000W (150% for 60 min)
- Input Voltage
- 12V DC, 120V AC
- Output Frequency
- 60 Hz (+/-0.3 Hz)
- Battery Charger
- 3-stage, user-selectable 25A/100A, wet/gel battery compatible
- Transfer Time
- 16.6 ms
- Surge Protection
- Built-in Isobar premium AC surge protection
- Unit Dimensions
- 8 x 10.5 x 17.5 in
- Material
- Polycarbonate, Aluminum
- Certifications
- UL458 (USA & Canada), RoHS Compliant
Peak Output Power4000W
DoubleBoost Output4000W (200% for 10 sec)
Output Voltage120V AC
Output WaveformPWM sine wave (in inverter mode), sine wave (line power)
Low Voltage Cut-Off10V DC +/-3%
Overload ProtectionIncludes 25A input breaker dedicated to charger; automatic overload and thermal shutoff
Cooling MethodMulti-speed fan
Unit Weight43.2 lbs
Operating Environment Humidity0-95% non-condensing
