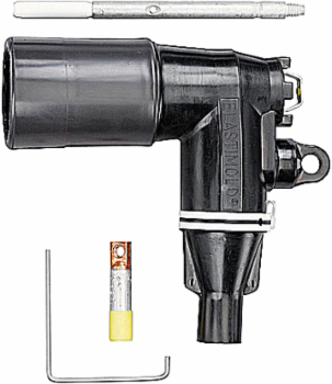

Thomas & Betts 376LRJ-5240-SG3 Loadbreak Elbow Connector with Test Point
- MPN: 376LRJ-5240-SG3
- UPC: 075114176699
- PPN: T-B-376LRJ-5240-SG3
CAD
$935.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet, V.D. Cap-Peroxide
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point
Application35kV, 200 Amps
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
MaterialHousing - EPDM Rubber
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
