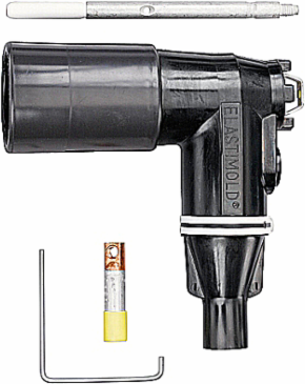

Thomas & Betts 375LR-J5250-SG3 Loadbreak Elbow Connector
- MPN: 375LR-J5250-SG3
- UPC: 075114258005
- PPN: T-B-375LR-J5250-SG3
CAD
$911.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. With Sealing Kit
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring. |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| Consist Of | 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Elbow Connector |
| Application | 35kV, 200 Amps |
| Size | Cable Insulation Diameter 0.980 inch to 1.180 inch. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 35kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 10.5x19.12x12.5 |
|---|
