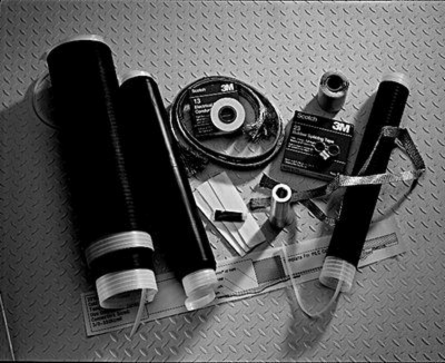

3M QS2011T 15 kV Cold Shrink PILC Splicing Kit, O.D. 0.56 - 0.88 Inch, 1 AWG to 3/0 AWG
- MPN: QS2011T
- UPC: 054007505464
- PPN: MMM-QS2011T
CAD
$2788.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 kV Cold Shrink PILC Splicing Kit, O.D. 0.56 - 0.88 Inch, 1 AWG to 3/0 AWG
Specifications
Key Specifications
| 3M ID | 80610735856 |
|---|---|
| China RoHS - Below MCV | Undetermined |
| Connector O.D. Range | 0.70 - 1.02 Inch |
| Indoor/Outdoor | Both |
| Maximum Connector Length (metric) | 127 mm (Al), 140 mm (Cu) |
| PILC Cable Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4 AWG |
| PILC Cable Insulation O.D. Range (metric) | 14.2 - 22.4 mm |
| Poly/EPR Cable Conductor Sizes (metric) | 50 - 95 mm² |
| Poly/EPR Cable Insulation O.D. Range (metric) | 17.8 - 27.2 mm |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | PILC |
| Trademark | 3M |
| Case Quantity | 1 |
|---|---|
| Color | Black |
| Connector O.D. Range (metric) | 17.8 - 25.8 mm |
| Maximum Connector Length | 5.0 inch (Al), 5.5 inch (Cu) |
| Number of Conductors | 1 |
| PILC Cable Insulation O.D. Range | 0.56 - 0.88 Inch |
| Poly/EPR Cable Conductor Sizes | 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG |
| Poly/EPR Cable Insulation O.D. Range | 0.70 - 1.07 Inch |
| Product Series | QS2000T Series |
| Product Type | PILC Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline PILC Transition |
| Voltage | 15 kV |
