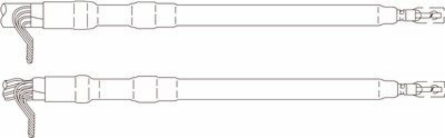

3M 7646-T-110 Cold Shrink QT-III Termination Kit, 5-15 kV, 1.53-2.32 Inch Cable O.D.
- MPN: 7646-T-110
- UPC: 054007417705
- PPN: MMM-7646-T-110
CAD
$613.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Termination Kit, 5-15 kV, 1.53-2.32 Inch Cable O.D.
Specifications
Key Specifications
| 3M ID | 80610834196 |
|---|---|
| BIL | 110 kV |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 38.9-58.9 mm |
| Compatible Lug | QL2-A-1000-1250 |
| Conductor Sizes | 1250 kcmil, 1500 kcmil, 1750 kcmil, 2000 kcmil |
| Indoor/Outdoor | Indoor Non-skirted |
| Insulation Rejacketing | No |
| Maximum Installed Length | 12.00 in |
| Number of Skirts | 0 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Voltage | 15 kV, 5 kV, 8 kV |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M |
| Cable Insulation Outside Diameter Range | 1.53-2.32 in |
| Case Quantity | 1 |
| Conductor Size by Voltage | (5 kV) 1750-2000 kcmil, (8 kV) 1500-2000 kcmil, (15 kV) 1250-2000 kcmil |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Product Series | 7640-T |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M™ |
| Voltage Application | Medium Voltage |
