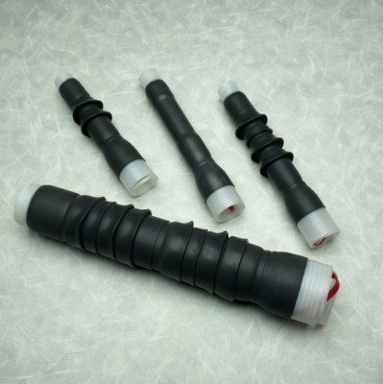

3M 7642-S-2-2/0 Cold Shrink Silicone Rubber Cable Termination, 0.64-1.08 Inch O.D., 5-15 kV
- MPN: 7642-S-2-2/0
- UPC: 054007420149
- PPN: MMM-7642-S-2-2/0
CAD
$544.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Silicone Rubber Cable Termination, 0.64-1.08 Inch O.D., 5-15 kV
Specifications
Key Specifications
| 3M ID | 80610836712 |
|---|---|
| BIL | 110 kV |
| Cable Insulation Outside Diameter Range | 0.64-1.08 in |
| Cable Type | Compact/Solid, Stranded |
| Color | Black |
| Conductor Sizes | 2/0 AWG |
| Connector O.D. Range (metric) | 22.9-33.0 mm |
| Indoor/Outdoor | Indoor Skirted |
| Insulation Rejacketing | Yes |
| Maximum Connector Length (metric) | 132 mm (Al), 140 mm (Cu) |
| Maximum Installed Length (metric) | 24.89 cm |
| Number of Skirts | 2 |
| PILC Cable Insulation O.D. Range | 0.74 - 1.17 Inch |
| Poly/EPR Cable Conductor Sizes | 250 kcmil, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil |
| Poly/EPR Cable Insulation O.D. Range | 0.88 - 1.36 Inch |
| Product Series | 7640-S |
| Product Type | PILC Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline PILC Transition |
| Voltage | 15 kV |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range (metric) | 16.3-27.4 mm |
| China RoHS - Below MCV | Undetermined |
| Conductor Size by Voltage | (15 kV) 800-1000 kcmil, (25/28 kV) 800-1000 kcmil |
| Connector O.D. Range | 0.90 - 1.30 Inch |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Maximum Connector Length | 5.2 inch (Al), 5.5 inch (Cu) |
| Maximum Installed Length | 9.80 in |
| Number of Conductors | 1 |
| PILC Cable Conductor Sizes | 250 AWG, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG |
| PILC Cable Insulation O.D. Range (metric) | 18.8 - 29.7 mm |
| Poly/EPR Cable Conductor Sizes (metric) | 120 - 240 mm² |
| Poly/EPR Cable Insulation O.D. Range (metric) | 22.0 - 34.6 mm |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
