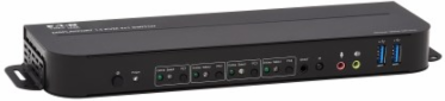

Tripp Lite B005DPUA4 KVM Switch, 4-Port, DisplayPort/HDMI, USB 3.0, 4K 60 Hz, HDR, DP 1.4, HDCP 2.2
- MPN: B005DPUA4
- UPC: 037332255020
- PPN: TRP-B005-DPUA4
CAD
$1190.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4-Port DisplayPort/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing
Features

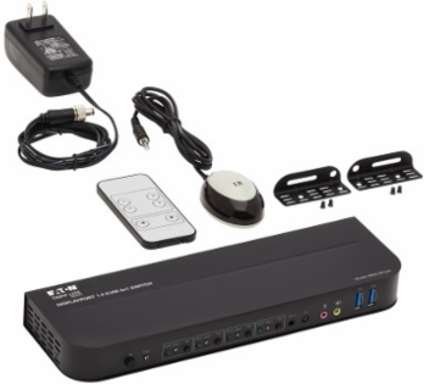

- IR extender and IR remote control included for wireless port switching
- External power supply included (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A) with interchangeable plug adapters (US, UK, EU, Australia)
- Rack/surface mounting brackets included
Documentation & Downloads
Specifications
Dimensions
- Max CPU
- 2
- Unit Dimensions
- 1.020 x 9.570 x 2.950 in
- PC/Server Connections
- DisplayPort; HDMI
- Side A - Connector 1
- (3) 3.5mm (Female)
- Side B - Connector 1
- (2) USB A (Female)
- Side B - Connector 3
- (4) USB 3.0 B (Female)
- Side B - Connector 5
- (10) 3.5mm (Female)
- Daisy-Chain Port
- No
Number of Monitors Supported1
Unit Weight1.11 lb
Computer Monitor InterfaceDisplayPort; HDMI
Side A - Connector 2(2) USB 3.0 A (Female)
Side B - Connector 2HDMI (Female)
Side B - Connector 4(5) DisplayPort (Female)
Port SelectionHotkey; Mouse; Pushbutton; Remote Selector
LED IndicatorsRed (Connection to Power), Green (Online), Blue (Selected Port)
Material
- Color
- Black
- Connector Plating
- Nickel
Material of ConstructionMetal
Performance
- Max Supported Video Resolution
- 4K x 2K (4096 x 2160) @ 60 Hz (HDMI and DisplayPort)
- Max Supported Color Depth
- 36-bit Deep Color
- Audio Specification
- 7.1 Surround Sound
- HDCP Specification
- 1.4; 2.2
- Extended Mode
- Yes
- Power Consumption
- 15 W
- AC Power Adapter Output
- 5V / 3A
- Storage Temperature Range
- 14° to 176°F (-10° to 80°C)
TechnologyDisplayPort; HDMI; Stereo Audio
Chroma Sub Sampling4:2:0; 4:2:2; 4:4:4
DisplayPort Specification1.4
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
ESD Protection+/- 8kV (air-gap discharge); +/- 4kV (contact discharge)
AC Power Adapter Input100-240V / 50/60Hz / 0.6A
Operating Temperature Range32° to 113°F (0° to 45°C)
Relative Humidity10% to 85% RH, Non-Condensing
Reference
- Product Warranty Period
- 3-year limited warranty
