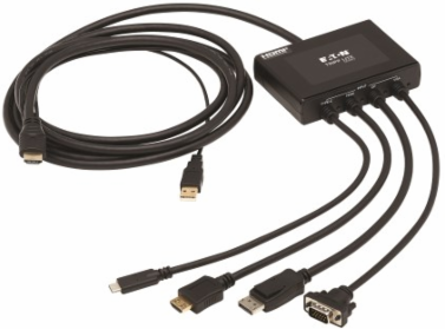

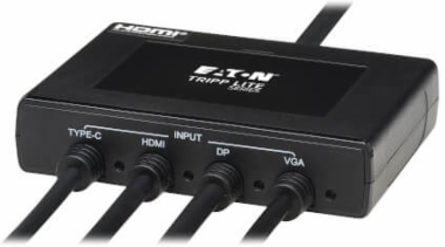

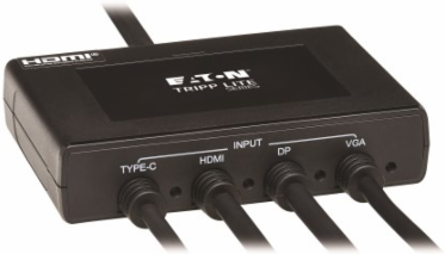

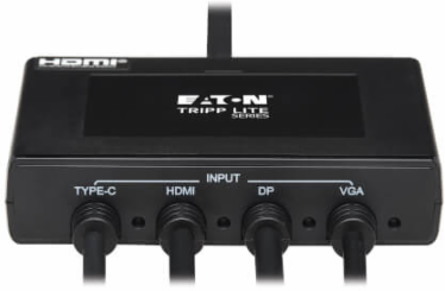

Tripp Lite B3214X1HDVC 4-Port Presentation Adapter, 4K 60 Hz (4:4:4) HDMI, DP, USB-C and 1080p VGA to HDMI, Built-In Cables, TAA
- MPN: B3214X1HDVC
- UPC: 037332262691
- PPN: TRP-B321-4X1-HDVC
CAD
$173.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4-Port Presentation Adapter, 4K 60 Hz (4:4:4) HDMI, DP, USB-C and 1080p VGA to HDMI, Built-In Cables, TAA
Documentation & Downloads
Specifications
Dimensions
- Input x Output
- 4 x 1

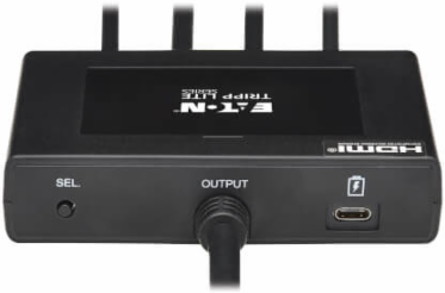

- Port Selection
- Pushbutton
- Technology
- DisplayPort; HDMI; VGA/SVGA
- Side A - Connector 1
- HDMI (Male)
- Side A - Connector 3
- USB-C (Female)
- Side B - Connector 2
- DisplayPort (Male)
- Side B - Connector 4
- USB-C (Male)
Unit Dimensions4.250 x 2.950 x 0.940 in
LED IndicatorsGreen - Power; Orange - Activity

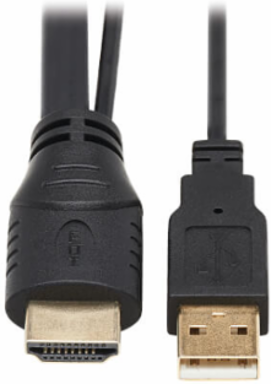

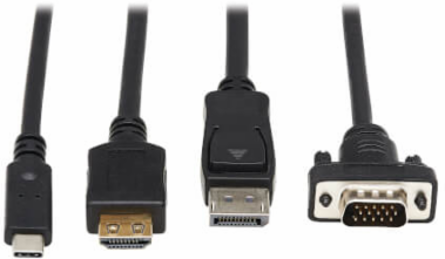

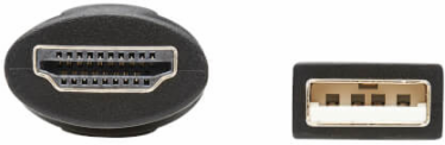

Host ConnectorDisplayPort (Male); HDMI (Male); USB-C (Male); VGA
Side A - Connector 2USB-A (Male)
Side B - Connector 1DB15 (Male)
Side B - Connector 3HDMI (Male)
Performance
- Max Supported Video Resolution
- HDMI/DP/USB-C: 4096x2160 @ 60 Hz; VGA: 1920x1080 @ 60 Hz
- Chroma Subsampling
- 4:4:4
- HDCP Specification
- 2.2
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0–85% non-condensing
Max Supported Color Depth12-bit
HDR SupportYes
DisplayPort Specification1.2a
Storage Temperature Range5° to 122°F (-15° to 50°C)
Material
- Color
- Black
- Connector Plating
- Nickel
Material of ConstructionPC (Plastic)
Reference
- Product Type
- Switch
Product Warranty Period1-year limited warranty
