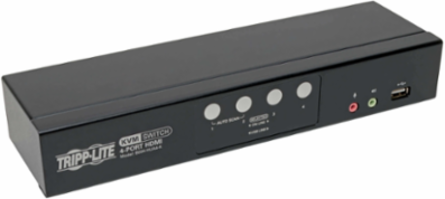

Tripp Lite B004-HUA4-K 4-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing
Tripp Lite B004-HUA4-K 4-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing
- MPN: B004-HUA4-K
- UPC: 037332226129
- PPN: TRP-B004-HUA4-K
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$957.57/ EA
Description
4-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing
Features
- Supports HD resolutions up to 1920 x 1200 (@ 60 Hz) for crystal-clear 1080p video
- Manual push buttons and hotkey commands allow easy toggling between computers
- Built-in 2-port USB 2.0 hub lets you share USB peripherals among connected computers
- 3.5 mm stereo jacks provide 2.1-channel surround sound audio input to each computer
- Widely compatible KVM switch works with Windows, Mac and Linux operating systems
- 3-year limited warranty
- Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
- Switching Between Computers Is Fast and Easy

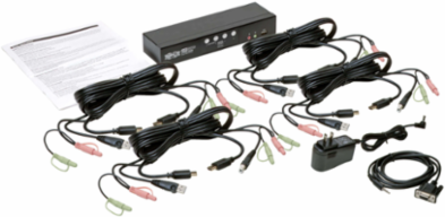

- Cables Are Included for Fast and Simple Setup
- USB Hub Lets You Share Peripherals between Computers
- Transmits Crystal-Clear 1080p Video and Digital Audio
Specifications
Features & Specifications
- Autoscan (Y,N)
- Y
- Number of Users
- 1
- Port Selection
- Hotkey; Pushbutton
- HDMI Specification
- 1.3
- USB Hub Ports
- Yes
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Cat5 KVM Switch
- No
Autoscan Duration5 seconds (Default)
NIAP-Certified SecureNo
Max Supported Video Resolution1920 x 1200 @60Hz
HDCP Specification1.4
Number of USB Hub Ports2
Audio Specification2.1-channel surround sound
TechnologyHDMI; USB 2.0 (High Speed)
Certifications
- Certifications
- Tested to FCC, RoHS, REACH
Connections
- Ports
- 4
- Side A - Connector 1
- (2) 3.5MM (FEMALE); HDMI (FEMALE); (2) USB A (FEMALE)
- Side A - Connector 3
- USB A (FEMALE)
- Computer Keyboard and Mouse Interface
- USB
- Console Keyboard and Mouse Interface
- USB
PC/Server ConnectionsHDMI; USB
Side A - Connector 2(8) 3.5MM (FEMALE); (4) HDMI (FEMALE); (4) USB B (FEMALE)
Side B - Connector 1(2) 3.5MM (FEMALE); USB A (FEMALE)
Computer Monitor InterfaceHDMI
Console Monitor InterfaceHDMI
Physical
- Color
- Black
- Unit Packaging Type
- Box
Unit Dimensions (hwd / in.)1.8 x 10.3 x 2.8
Unit Weight (lbs.)5.3
User Interface, Alerts & Controls
- LED Indicators
- ORANGE (ON LINE), GREEN (USB LINK)
Input
- External Power Supply Input Specs (V / Hz / A)
- 100-240V~50/60 Hz, 0.5A
- External Power Supply Cord Length (ft.)
- 5
- External Power Supply Certifications
- FCC; TUV; UL; cUL
External Power Supply Output Specs (V / A)5.3V, 2.4A
External Power Supply Plug(s)NEMA 1-15P North America
Communications
- IP Remote Access
- No
Environmental
- Operating Temperature Range
- 32 to 122°F (0 to 50°C)
- Relative Humidity
- 0 to 80% RH, Non-Condensing
Storage Temperature Range-4 to 140°F (-20 to 60°C)
Overview
- UPC Code
- 037332226129
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
