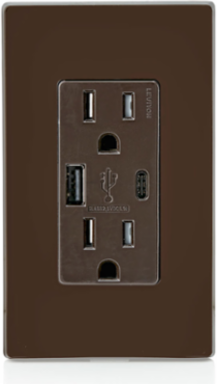

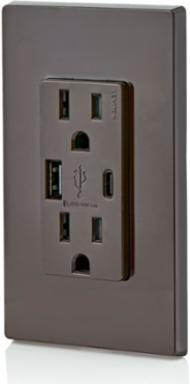

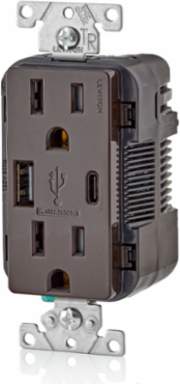

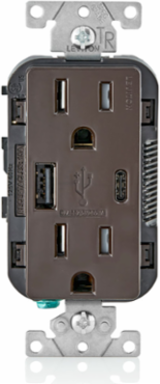

Leviton T5633-B USB Type A/C Wall Outlet Charger with 15A Tamper-Resistant Outlet, Brown, 5.1A
Leviton T5633-B USB Type A/C Wall Outlet Charger with 15A Tamper-Resistant Outlet, Brown, 5.1A
- MPN: T5633-B
- UPC: 078477841365
- PPN: LEV-T5633-B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$57.21/ EA
Description
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - Brown
Features
- Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
- Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
- One Type A Port and one Type-C Port; combined total of 5.1A of charging power - Type-C Port can charge maximum 3 Amps @ 5V - Type A Port can charge maximum 2.4 Amps @ 5V
- Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
- USB Ports tested to withstand over 10,000 insertions
- Charges most Type A and Type-C USB powered devices
- Type-C Port permits the cables to be inserted easily in either direction
- Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- No data transfer capability
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
- SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5635 )
- POWERFUL - Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
- CONVENIENT – No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
- THE FUTURE OF CHARGING – USB Type-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Built-in overcurrent protection helps protect electronics from receiving too much power, which can damage the device
Specifications
Material Specifications
- Body Material
- Thermoplastic
- Cover Material
- Thermoplastic
- Strap Material
- Steel
ColorBrown
GradeCommercial Specification Grade
Mechanical Specifications
- Listed
- cCSAus
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
NOM057
Terminal Accom.14-12 AWG
TerminationBack & Side
Warranty2-Year Limited
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Decora
- Product Type
- Outlet/USB Combo
- Type
- Type A/C Duplex Receptacle
- Wallplate
- Not Included

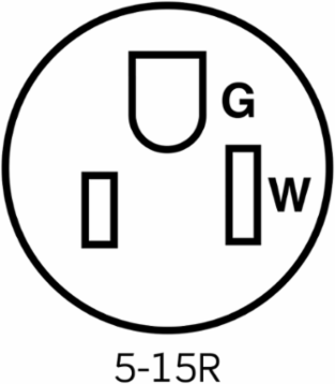

NEMA5-15R
Ratings15A-125V
Voltage125 VAC
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
Operating Temperature-10°C to 40°C
Terminal Accom.14-12 AWG
Torque Range14 – 18 in.-lbs
Electrical Specifications
- Amperage
- 15 A
- Color
- Brown
- Grounding
- Grounding
- Strap Material
- Steel
Body MaterialThermoplastic
Cover MaterialThermoplastic
Horsepower Rating15A-1/2 HP
Standards & Certifications
- FCC Part 15
- Class B
- NOM
- 057
- UL 498
- Yes
ListedcCSAus
UL 1310Yes
Warranty2-Year Limited
