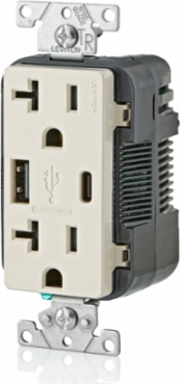

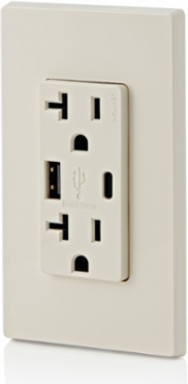

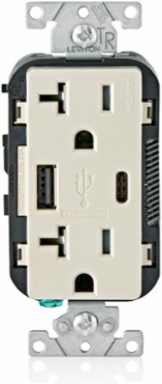

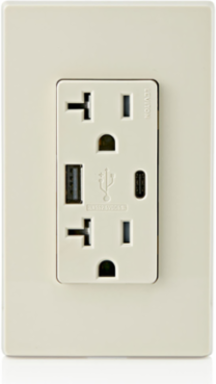

Leviton T5833-T Decora USB Wall Outlet Charger with 5.1A Dual USB Ports and Tamper-Resistant Receptacle
- MPN: T5833-T
- UPC: 078477841402
- PPN: LEV-T5833-T
CAD
$64.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-20R. 5.1 Amps, 5VDC, 2.0 Type A and Type-C USB Chargers. Grounding, Side Wired & Back Wired - Light Almond
Features
- Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
- Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
- Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
- USB Ports tested to withstand over 10,000 insertions
- Charges most Type A and Type-C USB powered devices
- Type-C Port permits the cables to be inserted easily in either direction
- Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- No data transfer capability
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
- SMART – Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
- POWERFUL – Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- EASY – USB-C has a reversible connector that can be easily inserted into the charging port in any direction
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- Thermoplastic
- Cover Material
- Thermoplastic
- Strap Material
- Steel
ColorLight Almond
GradeResidential/Commercial Specification Grade
Mechanical Specifications
- Listed
- cCSAus
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
NOM057
Terminal Accom.14-12 AWG
TerminationBack & Side
Warranty2-Year Limited
Product Features
- Brand
- Decora
- Product Type
- Outlet/USB Combo
- Wallplate
- Not Included

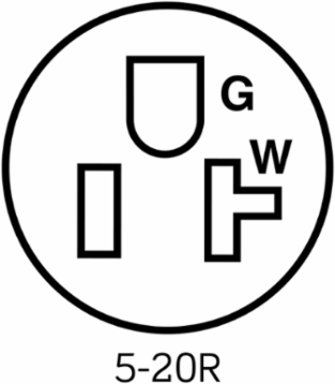

NEMA5-20R
TypeType A/C Duplex Receptacle
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
Operating Temperature-10°C to 40°C
Terminal Accom.14-12 AWG
TerminationBack & Side
Electrical Specifications
- Amperage
- 20 A
- Color
- Light Almond
- Grounding
- Grounding
- Ratings
- 20A-125V
- Voltage
- 125 VAC
Body MaterialThermoplastic
Cover MaterialThermoplastic
Horsepower Rating20A-1/2 HP
Strap MaterialSteel
Standards & Certifications
- FCC Part 15
- Class B
- NOM
- 057
- UL 498
- Yes
ListedcCSAus
UL 1310Yes
Warranty2-Year Limited
