Documentation & Downloads

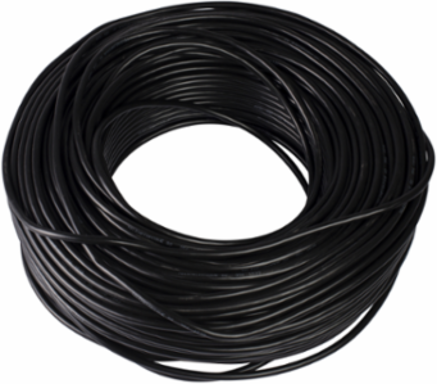

Telemecanique Sensors XZCB4L0050 PvR cable, 4 x 0.5 mm2, length 50 m
- MPN: XZCB4L0050
- PPN: TES-XZCB4L0050
CAD
$437.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PvR cable, 4 x 0.5 mm2, length 50 m
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Type
- cable
Complementary
- Tensile Strength
- 10-35 N/mm²
- Flame Retardance
- class C2 NF C 32-070
- Colour
- matt black
- Cable Cross Section
- 0.5-0.5 mm²
- Material
- PvR (PVC/NBR) sheath
- Accessory / Separate Part Category
- cabling accessories
- Hardness
- 70 shores A +/-5)
- [Ue] Rated Operational Voltage
- 300 V
Total Number Of Wires4
[Ui] Rated Insulation Voltage2000 V NF C 32-201-1
Accessory / Separate Part Designationbare cable
Bending Radiusminimum 3 x external diameter
Cable Length50 m
Wire Insulation MaterialPVC
Net Weight2.22 kg
Environment
- Ambient Air Temperature For Operation
- -35-90 °C
- Environmental Characteristic
- mineral resistant at 90 °C || without unmoulding agent || synthetic oils at 90 °C || soluble resistant at 90 °C
Ambient Air Temperature For Storage-40-100 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
