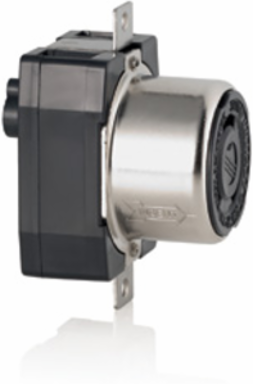

Leviton 6370CR 50 Amp Locking Flush Mount Receptacle, 125 Volt, Corrosion Resistant, Non-NEMA
- MPN: 6370CR
- UPC: 078477804568
- PPN: LEV-6370CR
CAD
$251.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

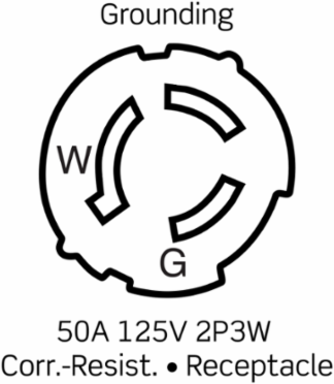

50Amp, 125V AC, Non-NEMA, 2P, 3W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, Corrosion Resistant(CR) – BLACK
Features
- Captive, quick drive assembly screws for faster assembly
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Lifetime Limited
NOM057
UL 498File E13399
Material Specifications
- Assembly Rivets
- SS 302/304
- Body and Contract Carrier
- Reinforced Nylon
- Color
- Black
- Connector Contact - Spring
- 0.041inch thick Nickel Plated Brass
- Face Module
- Reinforced Nylon
- Mounting Strap
- Single piece SS 302/304
- Terminal Set Screw
- SS 302/304
Back CoverReinforced Nylon
Box Terminal0.062inch thick Nickel Plated Copper
Connector Contact - Binding Plate0.100inch thick Nickel Plated Brass
Contact RivetNickel Plated Brass
Mounting ScrewsSS 302/304
Shroud0.062 inch thick SS 302/304
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face
- Terminal ID
- X, W, Y, Z and Green for ground
Terminal Accom.#10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)
Product Features
- Brand
- Black and White
NEMANon-NEMA
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 75°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole2
Voltage125 VAC
