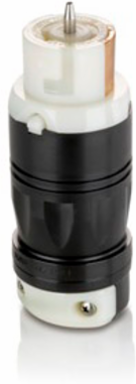

Leviton CS8164C 50 Amp Locking Connector, 480 Volt, Nylon Housing, 3-Phase, Industrial Grade
- MPN: CS8164C
- UPC: 078477326350
- PPN: LEV-CS8164C
CAD
$244.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50Amp, 3-Phase 480V AC, Non-NEMA, 3P, 4W, Black & White Locking Connector, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Screws
- Brass
- Center Pin
- SS 302/304
- Compression Nut, Strain Relief
- Nylon
- Contact - Binding Plate
- 0.100-inch thick Brass
- Contact Rivet
- Brass
- Face Module
- Nylon
- Ground Post
- Brass
- Housing
- Nylon
- Standard Cable Clamp
- Nylon
- Terminal Set Screw
- SS 302/304
Cable Clamp ScrewPhilips Head, SS 304
ColorBlack-White
Connector Contact - Spring0.041-inch thick Brass
Contact - Spring Value0.041inch thick Brass
Dust ShieldSantoprene TPE
Grommet/GasketSantoprene TPE
Ground ShuntBronze
Housing MaterialNylon
Terminal Block0.062-inch thick Copper
Wiring ChamberNylon
Mechanical Specifications
- Amperage
- 50 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Grounding
- Phase
- 3-Phase
- Product ID
- Ratings and Catalogue No. molded into face and stamped into shroud
- Terminal Accom.
- AWG #10 to #4 Stranded Wire
- Torque Range
- 20-30 in-lbs
- Wire
- 4
Cord Range.680 - 1.125
Dielectric Voltage Withstand2000V minimum per UL 498
Maximum Working Voltage3-Phase 480V as rated
Pole3
Temperature RiseMax 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current

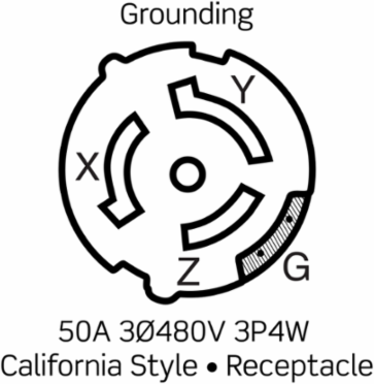

Terminal IDX, W, Y, Z and Green for ground
Voltage480 VAC
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Connector
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityUL94 V-2
