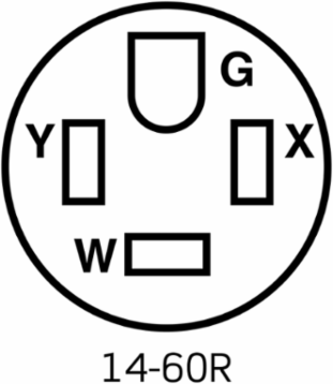

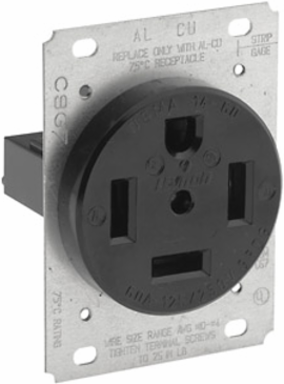

Leviton 9460 60 Amp NEMA 14-60R Flush Mount Receptacle, 125/250 Volt, Straight Blade, Nylon Body

60 Amp NEMA 14-60R Flush Mount Receptacle, 125/250 Volt, Straight Blade, Nylon Body
60 Amp NEMA 14-60R Flush Mount Receptacle, 125/250 Volt, Straight Blade, Nylon Body
  • MPN: 9460
  • UPC: 078477843253
  • PPN: LEV-9460

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$82.23/ EA

Description

60 Amp, 125/250 Volt, NEMA 14-60R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Steel Strap, - Black

Features

  • Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL498
File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited

Material Specifications

Body Material
Nylon
Face Material
Nylon
Strap Material
Galvanized Steel
ColorBlack
Line ContactsBrass Double-Wipe

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.Up to 4 AWG

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Device Type
Straight Blade Receptacle

Environmental Specifications

Operating Temperature
-40°C to 60°C

Electrical Specifications

Amperage
60 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
3
Voltage
125/250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire4

AC Horsepower Ratings

At Rated Voltage
3-1/2 HP

Downloads
