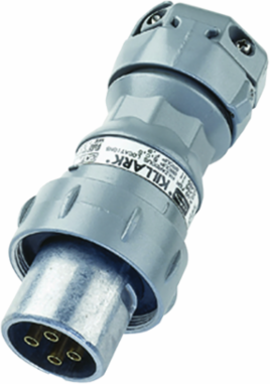

Killark VP6385 60A 2 Pole 3 Wire Plug Assembly, 600 VAC, 8.81 Inch Length, Type II, Aluminum Body
Killark VP6385 60A 2 Pole 3 Wire Plug Assembly, 600 VAC, 8.81 Inch Length, Type II, Aluminum Body
- MPN: VP6385
- UPC: 783936834429
- PPN: HBL-VP6385
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1143.77/ EA
Description
60A 2 Pole 3 Wire Plug Assembly
Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
- Insulators have high mechanical and dielectric strength.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Includes suitability for Type P marine cable.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 4.250 in
- Length
- 8.81 in
- Width
- 3.68 in
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Frequency Rating
- 50-400 Hz
- Style
- Style II
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D35D260
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
Dimensions8.81 in x 3.68 in x 3.68 in
Height3.68 in
Voltage Rating600 VAC;250 VDC
Amperage Rating60 A
Finish TypeBaked Powder Epoxy/Polyester Finish
Number Of Wires2
TypePin & Sleeve
Description - Invoice60A 2W3P PLUG ASSY-POLARIZED
Harmonization Code8536699902
MSDS FlagNo
Grommet Range0.65-1.50
SeriesVersaMate Series
Carton - SCC-14 Next Lower Level Sub Pack00783936834429
Certifications
- EU RoHS Indicator
- Contact Manufacturer
