Schneider Electric

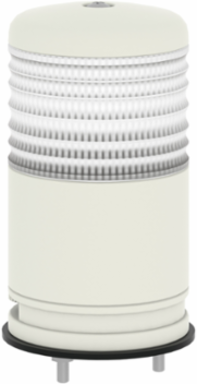

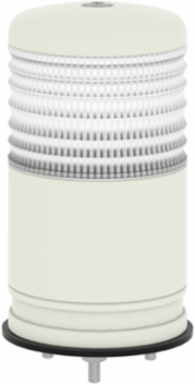

Schneider Electric XVC6B15SK Harmony XVC Monolithic Tower Light 60mm Red IP54 24V AC/DC Buzzer

  • MPN: XVC6B15SK
  • PPN: SCH-XVC6B15SK
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $306.98

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

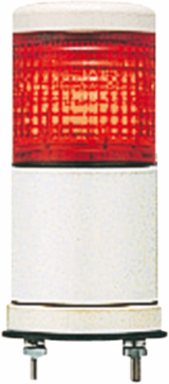

    This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 1 red illuminated signaling unit and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 200g and it is 121mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia

    Physical Attributes

    Cable Length
    850 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Material
    polycarbonate: illuminated unit, ABS (acrylonitrile butadiene-styrene): base unit, PBT + ABS (UL94HB): top cover
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.4 kg CO2 eq., 0.3842197897
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    3 kg CO2 eq., 2.7824855119
    Local Data Status
    Publishable
    Return Indicator
    Y
    Weee Scope
    Out
    Eoli Availability Display
    Yes
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2150
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Awg Gauge
    AWG 22
    Cable Cross Section
    0.33-0.33 mm²
    Current Consumption
    65 mA
    Flashing Frequency
    1 Hz
    Light Source
    LED steady or flashing red
    Mounting Diameter
    60 mm
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    complete pre-wired monolithic tower light
    Range Of Product
    Harmony XVC6
    Software Version
    v5.9.4
    Supply Circuit Type
    AC/DC
    Total Lifecycle Carbon Footprint
    27 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features, high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and product is adhering to EN standards.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
    Height Nominal
    120.8 mm
    [Uimp] Rated Impulse Withstand Voltage
    0.8 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    259.6425
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Carbon Footprint Of The Distribution Phase [A4]0.0575359519, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.4550761966, 0.5 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]23 kg CO2 eq., 23.118875
    Local Publishable Date2026-01-12
    Stocking FlagN
    Scope PerimeterOutside of Europe
    End Of Life Doc RefENVEOLI1904008EN
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Beacon Or Indicator Bank Unit Type1 illuminated unit
    Component NameXVC
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Fundamental Frequency2.23 kHz
    MarkingCE
    Noise Level70-85 dB continuous or intermittent tone)1 m
    Product Mountingon base
    Protective TreatmentTC
    ReturnabilityYes
    Sound Signallingbuzzer
    Sustainable PackagingYes
    Pep CodeENVPEP1904008EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
    Certificate AgencyUL
    [Us] Rated Supply Voltage24 V
    Package Weight(Lbs)0.44 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C, -10-50 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    26.7981924501
    Environmental Disclosure
    ENVPEP1904008EN
    Ip Degree Of Protection
    IP54 flat surface installation IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1904008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Pep CodeENVPEP1904008EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    complete pre-wired monolithic tower light
    Range Of ProductHarmony XVC6

    ETIM

    ETIM 8
    EC001042
    ETIM 9EC001042

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
