Schneider Electric XVB7C25 Light Module, Harmony XVB7 Modular Tower Light, Orange, Ø70mm, Steady, Colored Lens
- MPN: XVB7C25
- PPN: SCH-XVB7C25
CAD
$97.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

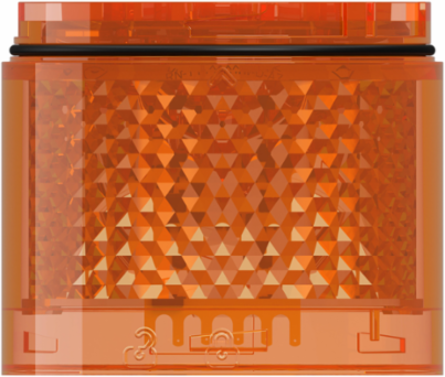

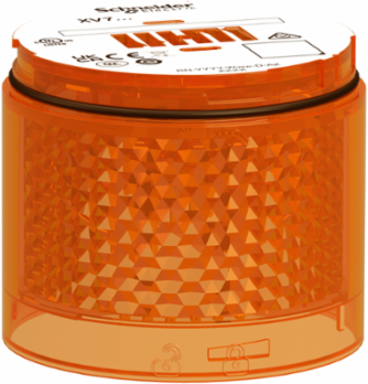

Engineered with a 70 mm standard diamond-cut polycarbonate lens, this stack light module delivers a highly visible, steady orange light signal that radiates a full 360 degrees. The sophisticated optical diamond patterning spreads the light uniformly to eliminate blind spots, allowing machine operators and factory personnel to immediately identify system standby or custom status warnings from any angle in high-glare environments.
Features
- Designed explicitly to withstand intense structural stresses, this light module is factory-tested to endure 6 gn of vibration amplitude (from 10 to 500 Hz) and a punishing 30 gn of physical shock resistance during continuous operation. This makes it an exceptionally rugged indicator for heavy manufacturing lines, automotive assembly loops, and conveyor networks where constant equipment oscillation would crack or dislodge standard, low-grade indicator columns.

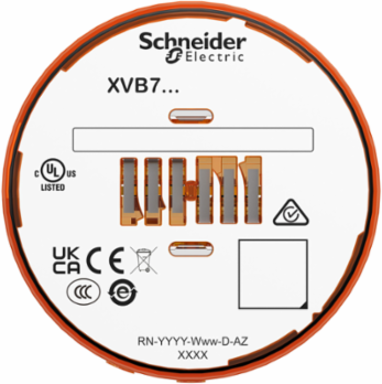

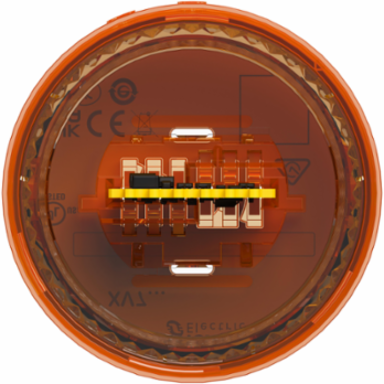

- Part of the highly flexible Harmony XVB7 modular lineup, this single lens element snaps directly onto a base unit or interconnects with other indicator layers with an effortless twisting mechanical lock.
- Equipped with an integrated, high-efficiency solid-state LED block, this 24V AC/DC light module features a massive 50,000-hour rated operational service life. It consumes a remarkably lean 35 mA to 40 mA of current to maximize brightness while minimizing thermal output and power consumption, providing automation engineers with a maintenance-free signaling solution that completely eliminates the downtime and filament burnout common with legacy incandescent bulbs.
- Built to thrive inside harsh manufacturing environments, this module features a heavy-duty polycarbonate body that boasts an airtight, waterproof IP66 rating alongside NEMA Type 4, 4X, 12, and 13 structural indoor protection. The impenetrable physical barriers ensure that abrasive fine dust, flying metal shards, cooling lubricants, and direct high-pressure washdown jets are completely blocked from entering the electronic contact base.
- Fully certified to strict CSA C22.2 No 60947-5-1, UL 60947-5-1, and IEC industrial standards, this device carries authentic cULus, CE, and UKCA safety markings. This absolute code compliance provides Canadian machinery exporters and electrical contractors with total peace of mind during regulatory field inspections, ensuring smooth integration into low-voltage Class II control circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Current Consumption
- 35 mA 24 V AC, 40 mA 24 V DC
- Signalling Type
- steady, steady
- Carbon Footprint Of The Distribution Phase [A4]
- 0.036722602441215335, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0005847744167611104, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 10 kg CO2 eq., 10.189760279105856
- Local Publishable Date
- 2026-03-26
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Shock Protection Class
- class II
- Light Source
- LED, orange
- Mounting Diameter
- 70 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVB7
- Service Life In Hours
- 50000 h
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2501029EN
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ue] Rated Operational Voltage
- 24 V AC/DC
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Package Weight(Lbs)
- 104.000 g
- Warranty (In Months)
- 18
Device Compositionstandard lens, standard lens
Certificate AgencycULus, CCC, RCM, UKCA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.10489713268981493
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2664420743959004
Local Data StatusPublishable
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXVB7
Inrush Current0.5 A
MaterialPC (polycarbonate)
Mounting Positionupright/inverted
Product Or Component Typelight module
ReturnabilityYes
Shock Resistance30 gn 6 ms) in operation
Sustainable PackagingNo
Vibration Resistance6 gn +/- 0.5 mm 10-500 Hz)in operation
Light Source 1 Light Block Colororange
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %87
[Ui] Rated Insulation Voltage50 V
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 11.598406863049547
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionType 4/4X/12/13 indoor use only
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
