Tripp Lite

Tripp Lite PV700HF 700W PowerVerter Ultra-Compact Inverter with 3 Outlets

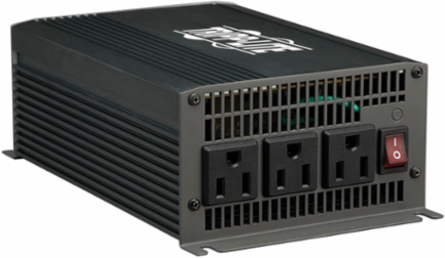

700W PowerVerter Ultra-Compact Inverter with 3 Outlets
  • MPN: PV700HF
  • UPC: 037332137999
  • PPN: TRP-PV700HF

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$278.59/ EA

Description

700W PowerVerter Ultra-Compact Inverter with 3 Outlets

Features

  • 700W continuous output; 1400W peak output (instantaneous)
  • Converts 12V DC (battery) power into 110-120V AC (household) power; 3 AC outlets
  • Installs in minutes (integrated mounting feet included)
  • Provides a quiet alternative to generator noise and fumes
  • Includes "battery saver" low voltage alarm/shutdown
  • 1-year limited warranty

Specifications

Battery

DC System Voltage (VDC)
12

Physical

Cooling Method
Fan
Shipping Dimensions (hwd / in.)
3.70 x 10.10 x 6.30
Unit Dimensions (hwd / in.)
2.75 x 8.17 x 5
Material of ConstructionAluminum/sheet metal
Shipping Weight (lbs.)3.50
Unit Weight (lbs.)2.8

User Interface, Alerts & Controls

Switches
Lighted on/off power switch
Audible AlarmDual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less

Input

Recommended Electrical Service
Requires 12V DC input source capable of delivering 80A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 125A battery system fusing is recommended
Input Connection Type
Set of 2 DC bolt-down wiring terminals
Voltage Compatibility (VDC)
12
Maximum Input Amps / WattsFull continuous load - 80A at 12V DC, No load - 0.95A at 12V DC, Shutdown - 150 micro amps
Input Cord Length DetailsUser supplies cabling. Minimum gauges for full load operation: 6 gauge or larger (see instruction manual)

Output

Frequency Compatibility
60 Hz
Output (Watts)
700
Output Receptacles
(3) 5-15R
Peak Output Capacity (Watts)
1400
Output Frequency Regulation
60 Hz (+/- 3 Hz)
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)700
Output Voltage RegulationMaintains PWM sine wave output voltage of 115 V AC (+/- 8 V AC)

Environmental

Relative Humidity
0-95% non-condensing

Overview

UPC Code
037332137999

Special Features

TVSS Grounding
Main grounding screw for connecting inverter to earth, vehicle, or boat grounding systems

Warranty

Product Warranty Period (Worldwide)
1-year limited warranty
