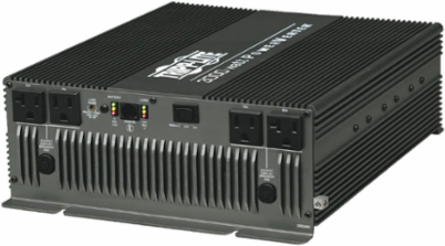

Tripp Lite PV3000HF 3000W PowerVerter Compact Inverter for Trucks with 4 Outlets
Tripp Lite PV3000HF 3000W PowerVerter Compact Inverter for Trucks with 4 Outlets
- MPN: PV3000HF
- UPC: 037332117519
- PPN: TRP-PV3000
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1416.87/ EA
Description
3000W PowerVerter Compact Inverter for Trucks with 4 Outlets
Features
- 12V DC input; 120V AC output; 4 outlets
- 3000 watts continuous output; 6000 watts peak output (instantaneous)
- Quiet electricity for TVs, DVD players, microwaves, power tools, coffee makers and game systems
- Straight forward, uncomplicated installation
- Includes "Battery Saver" low voltage alarm/shutdown
- Remote Control LED/Switch Module and Cable included
- 1-year limited warranty
Specifications
Battery
- DC System Voltage (VDC)
- 12
Physical
- Cooling Method
- Fan
- Material of Construction
- Aluminum / sheet metal
- Shipping Weight (lbs.)
- 16.60
- Unit Weight (lbs.)
- 13.2
Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Shipping Dimensions (hwd / in.)11.00 x 4.60 x 15.90
Unit Dimensions (hwd / in.)4 x 10.5 x 13.5
User Interface, Alerts & Controls
- Front Panel LEDs
- Set of 6 LEDs offer continuous status information on load percentage (5 levels reported) and battery charge level (7 levels reported). See manual for sequences.
- Audible Alarm
- Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
Switches3 position rocker switch enables on/off power control, plus "remote" setting which enables inverter to be remotely powered on or off when used in conjunction with included module.
Input
- Recommended Electrical Service
- Requires 12VDC input source capable of delivering 286A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 500A battery system fusing is recommended.
- Input Connection Type
- DC INPUT: Set of 4 DC bolt-down terminals (2 red / 2 black). AC INPUT: hardwire
- Voltage Compatibility (VDC)
- 12
Maximum Input Amps / WattsFull continuous load - 286A at 12VDC, No load - 2.6A at 12VDC, Shutdown / load sense mode - less than 500 milliamps
Input Cord Length DetailsUser supplies cabling. Minimum gauges for full load operation: 0 (10 ft max), 00 or 2/0 (13 ft max), Twin 00 using 4 conductors (26 ft)
Output
- Frequency Compatibility
- 60 Hz
- Output (Watts)
- 3000
- Output Receptacles
- (2) 5-15R; (2) 5-15/20R
- Peak Output Capacity (Watts)
- 6000
- Output Frequency Regulation
- 60 Hz (+/- 3 Hz)
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)3000
Output Voltage RegulationMaintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
Overload ProtectionAutomatic overload protection shuts down inverter system in the event of overloads. Output is protected by 2 built-in 20A circuit breakers (each controlling power to 2 outlets). Inverter and electrical system are further protected via set of 6 40A automotive input fuses.
Environmental
- Relative Humidity
- 0-95% non-condensing
Overview
- UPC Code
- 037332117519
Special Features
- Load Sensing
- Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
TVSS GroundingGrounding lug grounds the inverter to vehicle or earth ground - user supplies cabling
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
