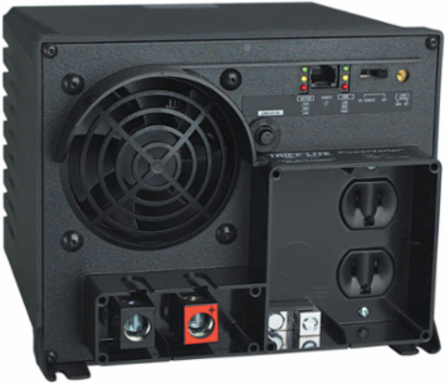

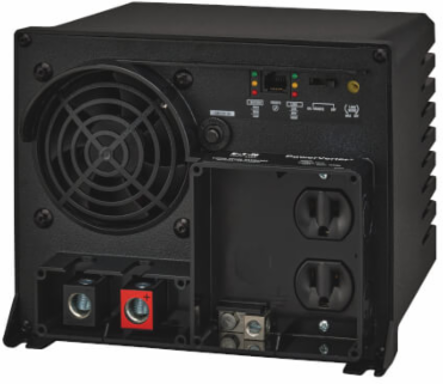

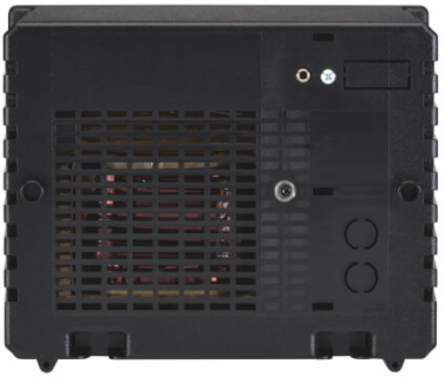

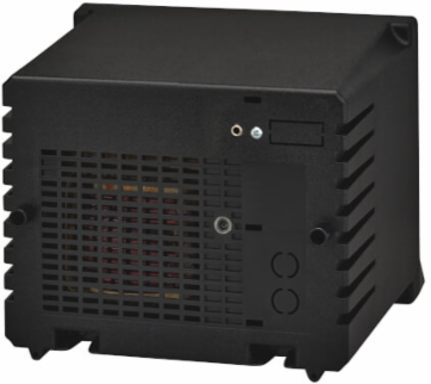

Tripp Lite PV1250FC 1250W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Tripp Lite PV1250FC 1250W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
- MPN: PV1250FC
- UPC: 037332124241
- PPN: TRP-PV1250FC
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$916.85/ EA
Description
1250W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Features
- 12V DC input; 120V AC output; 2 outlet
- 1250 watts continuous output
- Peak surge output: OverPower (up to 1 hour) - 1875 watts, Double-Boost (up to 10 seconds) - 2500 watts
- High efficiency power conversion
- Automatic overload protection
- 1-year limited warranty
Specifications
Battery
- DC System Voltage (VDC)
- 12
Physical
- Cooling Method
- Fan
- Material of Construction
- Polycarbonate
- Shipping Weight (lbs.)
- 22.50
- Unit Weight (lbs.)
- 23.2
Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Shipping Dimensions (hwd / in.)12.50 x 10.40 x 10.40
Unit Dimensions (hwd / in.)7 x 8.75 x 9
User Interface, Alerts & Controls

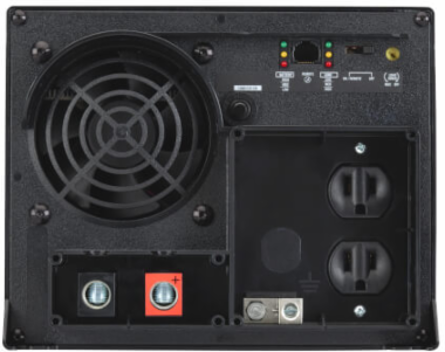

- Front Panel LEDs
- Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Switches3 position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APRM4 remote
Input
- Recommended Electrical Service
- Requires 12V DC input source capable of delivering 127A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 200A battery system fusing is recommended.
- Input Connection Type
- Set of 2 DC input terminals
- Voltage Compatibility (VDC)
- 12
Maximum Input Amps / WattsFull continuous load - 127A at 12V DC, No load - 2.2A at 12V DC
Input Cord Length DetailsUser supplies cabling. 4 gauge or larger recommended.
Output
- Frequency Compatibility
- 60 Hz
- Output (Watts)
- 1250
- Output Receptacles
- (2) 5-15R
- Peak Output Capacity (Watts)
- 2500
- Output Frequency Regulation
- 60 Hz (+/- 0.3 Hz)
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)1250
Output Voltage RegulationMaintains PWM sine wave output voltage of 120 V AC (+/-5%)
Overload ProtectionCircuit breaker
Environmental
- Relative Humidity
- 0-95% non-condensing
Overview
- UPC Code
- 037332124241
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
