Thomas & Betts

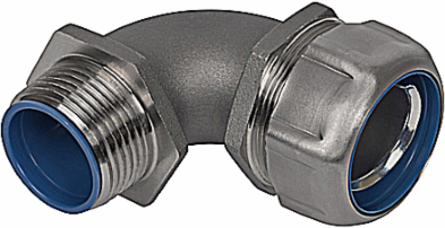

Thomas & Betts 5352SST6-6HT 90 Degree Fitting for Flexible Metallic Conduit

90 Degree Fitting for Flexible Metallic Conduit
  • MPN: 5352SST6-6HT
  • PPN: T-B-5352SST6-6HT

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$282.48/ EA

Description

1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.35 Inches/59.69mm, Width 1.33 Inches/33.78mm, Height 2.25 Inches/57.15mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone

Features

  • NEMA Ratings: 3, 3R, 4, 4X
  • Ideal for Food and Beverage, Pharmaceutical, Petrochemical, Wastewater Processing, Salt Water and Other Corrosive Environments

Specifications

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Nominal size in inch
1/2 inch
Revolving thread
N
Connection type screw connection to housing
Thread
Material housing
Stainless steel
Total length
59.69mm
Approved in combination with protective conduit DIN EN 61386-23
N
Approved in combination with protective conduit UL
N
Operating temperature
0-150°C
Nominal diameter20mm
Model90°-elbow
Construction typeExternal thread
One-pieceN
Surface protectionUntreated
Total height57.15mm
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit FIN

North American Specifications (UNSPSC)

UNSPSC
39121420 Liquid tight connectors
Brand Name
T&B Industrial Fitting
Special Features
Stronger and More UV-resistant than Nonmetallic Fittings
Size
1/2 Inch
Material
316 Stainless Steel with Duraplated Ground Cone
Color
Metallic
Insulation
Y
IGCC4585 Liquid tight connectors
Type90 Degree Fitting for Flexible Metallic Conduit
ApplicationConnects Flexible Metallic Liquidtight Conduit to a Box or Enclosure
Connection90 Degree
FinishNone
NEMA Rating3, 3R, 4, 4X
Temperature Rating150 Degrees C

Packaging

Inner Quantity
25
Outer Quantity
50
Weight Uom
29.56 lbs. per 100
Inner Dimensions (inches)8x5x4
Outer Dimensions (inches)8.43x5.18x8.12
