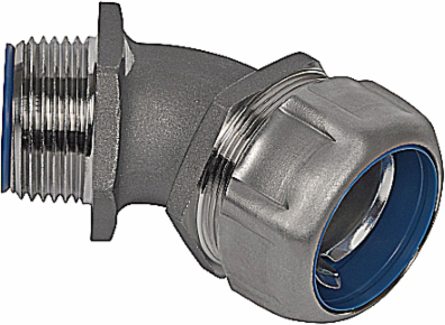

Thomas & Betts 5341SST6-6HT 45 Degree Fitting for Flexible Metallic Conduit

MPN: 5341SST6-6HT
PPN: T-B-5341SST6-6HT

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$239.73/ EA

Qty:

Loading add to cart quantity...

Description

3/8 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.18 Inches/55.37mm, Width 1.14 Inches/28.96mm, Height 1.43 Inches/36.32mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel Body and Ground Cone

Features

NEMA Ratings: 3, 3R, 4, 4X
Ideal for Food and Beverage, Pharmaceutical, Petrochemical, Wastewater Processing, Salt Water and Other Corrosive Environments

Specifications

European Specifications (ETIM)

ETIM: EC001180 Screw connection for protective metallic hose

Nominal size in inch: 3/8 inch

Revolving thread: N

Connection type screw connection to housing: Thread

Material housing: Stainless steel

Total length: 55.37mm

Approved in combination with protective conduit DIN EN 61386-23: N

Approved in combination with protective conduit UL: N

Operating temperature: 0-150°C

Nominal diameter16mm

Model45°-elbow

Construction typeExternal thread

One-pieceN

Surface protectionUntreated

Total height36.32mm

Approved in combination with protective conduit CSAN

Approved in combination with protective conduit FIN

Packaging

Inner Quantity: 25

Outer Quantity: 50

Weight Uom: 20.31 lbs. per 100

Inner Dimensions (inches)6x4.5x4

Outer Dimensions (inches)8.5x4.87x6.37

North American Specifications (UNSPSC)

UNSPSC: 39121420 Liquid tight connectors

Brand Name: T&B Industrial Fitting

Special Features: Stronger and More UV-resistant than Nonmetallic Fittings

Size: 3/8 Inch

Material: 316 Stainless Steel Body and Ground Cone

Color: Metallic

Insulation: Y

IGCC4585 Liquid tight connectors

Type45 Degree Fitting for Flexible Metallic Conduit

ApplicationConnects Flexible Metallic Liquidtight Conduit to a Box or Enclosure

Connection45 Degree

FinishNone

NEMA Rating3, 3R, 4, 4X

Temperature Rating150 Degrees C
