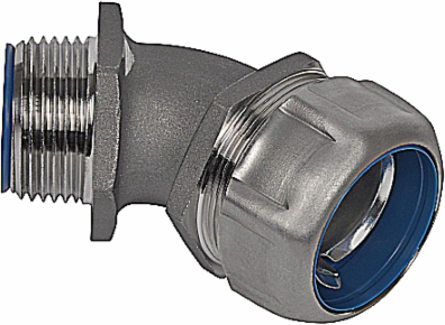

Thomas & Betts 5342SST6-6HT 45 Degree Fitting for Flexible Metallic Conduit
- MPN: 5342SST6-6HT
- UPC: 786210080741
- PPN: T-B-5342SST6-6HT
CAD
$155.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.37 Inches/60.20mm, Width 1.33 Inches/33.78mm, Height 1.76 Inches/44.70mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel Body and Ground Cone
Features
- NEMA Ratings: 3, 3R, 4, 4X
- Ideal for Food and Beverage, Pharmaceutical, Petrochemical, Wastewater Processing, Salt Water and Other Corrosive Environments
Specifications
Packaging
| Inner Quantity | 25 |
|---|---|
| Outer Quantity | 50 |
| Weight Uom | 24 lbs. per 100 |
| Inner Dimensions (inches) | 8x5x4 |
|---|---|
| Outer Dimensions (inches) | 8.43x5.18x8.12 |
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal size in inch | 1/2 inch |
| Revolving thread | N |
| Connection type screw connection to housing | Thread |
| Material housing | Stainless steel |
| Total length | 60.20mm |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Approved in combination with protective conduit UL | N |
| Operating temperature | 0-150°C |
| Nominal diameter | 20mm |
|---|---|
| Model | 45°-elbow |
| Construction type | External thread |
| One-piece | N |
| Surface protection | Untreated |
| Total height | 44.70mm |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit FI | N |
North American Specifications (UNSPSC)
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| Brand Name | T&B Industrial Fitting |
| Special Features | Stronger and More UV-resistant than Nonmetallic Fittings |
| Size | 1/2 Inch |
| Material | 316 Stainless Steel Body and Ground Cone |
| Color | Metallic |
| Insulation | Y |
| IGCC | 4585 Liquid tight connectors |
|---|---|
| Type | 45 Degree Fitting for Flexible Metallic Conduit |
| Application | Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure |
| Connection | 45 Degree |
| Finish | None |
| NEMA Rating | 3, 3R, 4, 4X |
| Temperature Rating | 150 Degrees C |
