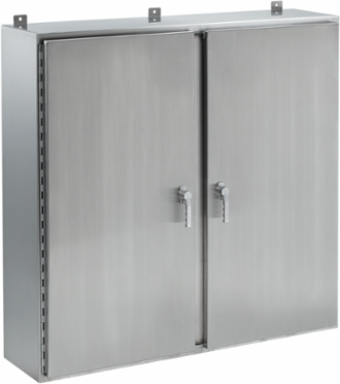

Nvent Hoffman A30H6010WFSSLP3PT Wallmount 2-Door 3-Point Latch Type 4X, 30x60x10, Brushed, SS 304
Nvent Hoffman A30H6010WFSSLP3PT Wallmount 2-Door 3-Point Latch Type 4X, 30x60x10, Brushed, SS 304
- MPN: A30H6010WFSSLP3PT
- UPC: 783510145248
- PPN: HOF-A30H6010WFSSLP3PT
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Two-door wall-mount enclosures provide industry-leading protection in corrosive environments. This Wallmount 2-Door 3-Point Latch Type 4X, A30H6010WFSSLP3PT item measures 30x60x10 in. with a material of SS 304, Brushed.
Features
- Seams continuously welded and ground smooth
- Removable centerpost for easy panel installation
- Flange trough collar around all sides of enclosure door openings
- External mounting brackets
- Heavy-duty 3-point latching mechanism operated by Type 316 stainless steel PowerGlide padlocking handles
- Easily removable doors by pulling heavy gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Seamless foam-in-place gasket
- Collar studs provided for mounting optional panels
- Bonding provisions on doors; grounding studs on body
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 1,524
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 2
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Material
- Stainless Steel
Height (H)762
Depth (D)254
FinishBrushed #4
IP RatingIP66
Weight215
Size30.00x60.00x10.00 in
