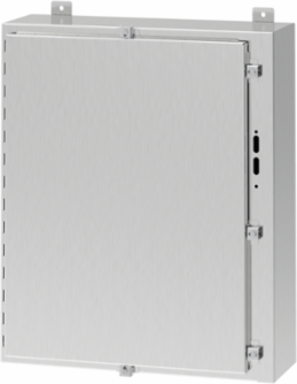

nVent Hoffman A30HS2508SSLP Wallmount Disconnect Enclosure with Clamps Type 4X, 30x25x8, Brushed, SS304
- MPN: A30HS2508SSLP
- UPC: 783510275303
- PPN: HOF-A30HS2508SSLP
- UNSPSC: 39121324
CAD
$4374.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures with Clamps include door bracket for attaching disconnect door catch. This Wallmount Disconnect Enclosure with Clamps Type 4X, A30HS2508SSLP item measures 30x25x8 inches with material SS304 finish Brushed.
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Seamless foam-in-place gasket
- Collar studs provided for mounting optional panels
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door; ground stud on body
- All exterior hardware on Type 316L enclosures matches the enclosure material
- Adjustable door interlock bracket fastened to door
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 645
- Protection Rating
- NEMA Type 4X
- Thickness (T)
- 1.98
- Data Pocket Size (D x E)
- 305 x 305
- Weight
- 63
- Size
- 30.00x25.38x8.00 in
Height (H)762
Depth (D)203
FinishBrushed #4
Clamp Quantity5
IP RatingIP66
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
